Why Most Android Head Units Fail in the Field

Ask any distributor what comes back most often, and the answer is rarely “the screen broke.” It is the slow creep of failures that only appear after the car has been parked in the sun for a month.

The ZT-A86 is our answer to those three failures. Every engineering choice below exists because something cheaper failed first.

What It Actually Is

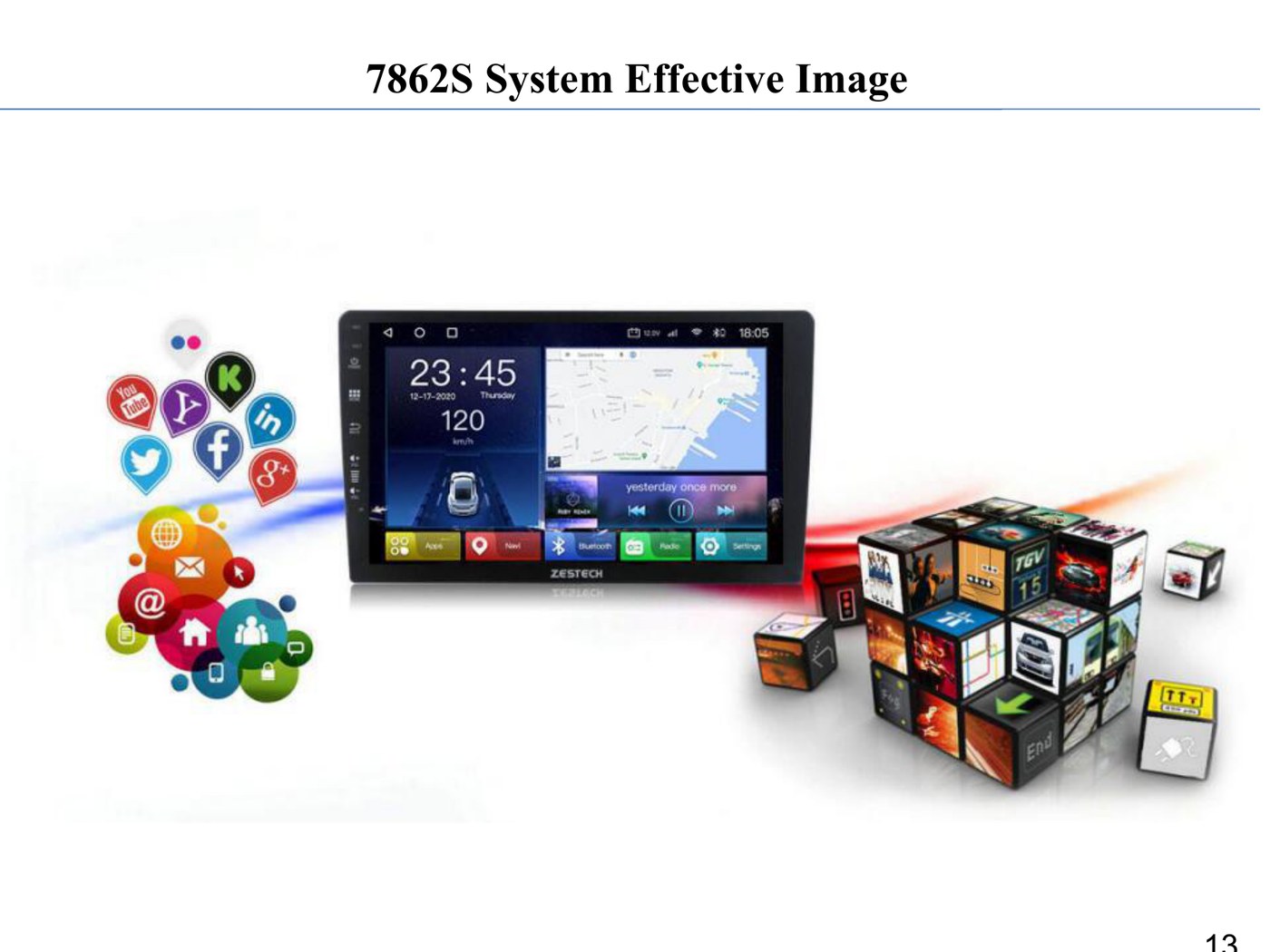

The ZT-A86 is a native-Android car multimedia head unit built on the 7862S octa-core platform — 2× Cortex-A75 at 2.0 GHz for foreground work and 6× Cortex-A55 at 2.0 GHz for background tasks, paired with a Mali-G52 GPU. It is a universal-fit platform for 9” and 10.1” dashboards, offered in a super-slim chassis design so it drops into factory dash openings without a surgery job.

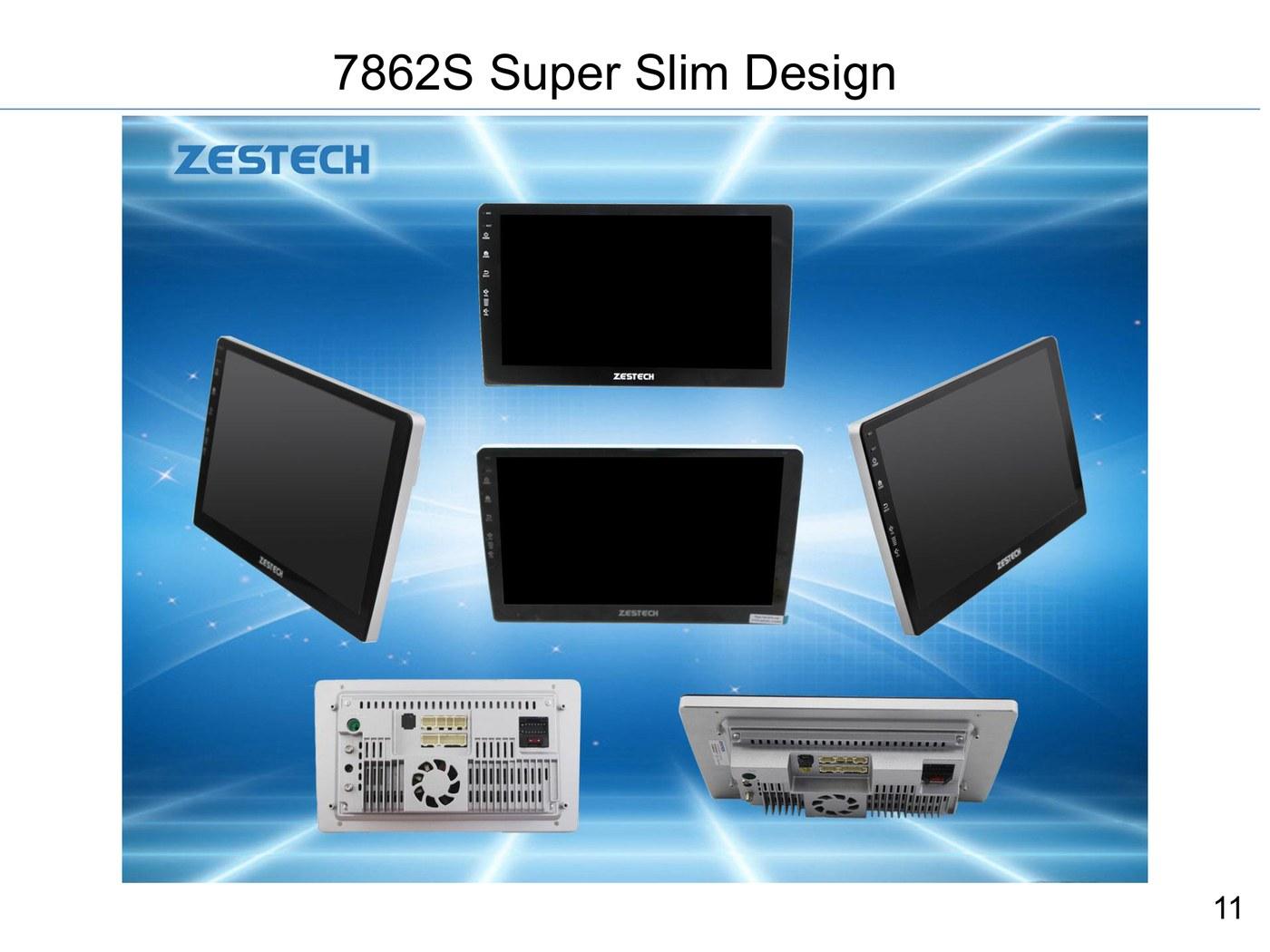

Super-slim chassis designed for 9” / 10.1” universal fitment — no dash cutting, no adapter frame drama.

Memory scales from 2GB + 32GB up to 8GB + 128GB, so the same platform can serve a price-sensitive replacement job and a flagship upgrade bundle without changing wiring harnesses or mounting brackets.

Five Engineering Choices That Matter

1 · Dual heat sinks instead of a fan

The amplifier stage and the SoC are the two hottest things in any head unit, and they sit inches apart. The ZT-A86 spreads both loads across dual aluminium heat sinks bonded to the chassis, turning the metal frame itself into the cooling path. No fan, no moving parts, no intake for dashboard dust — just passive thermal headroom that keeps the A75 cores off their throttle point during long summer drives.

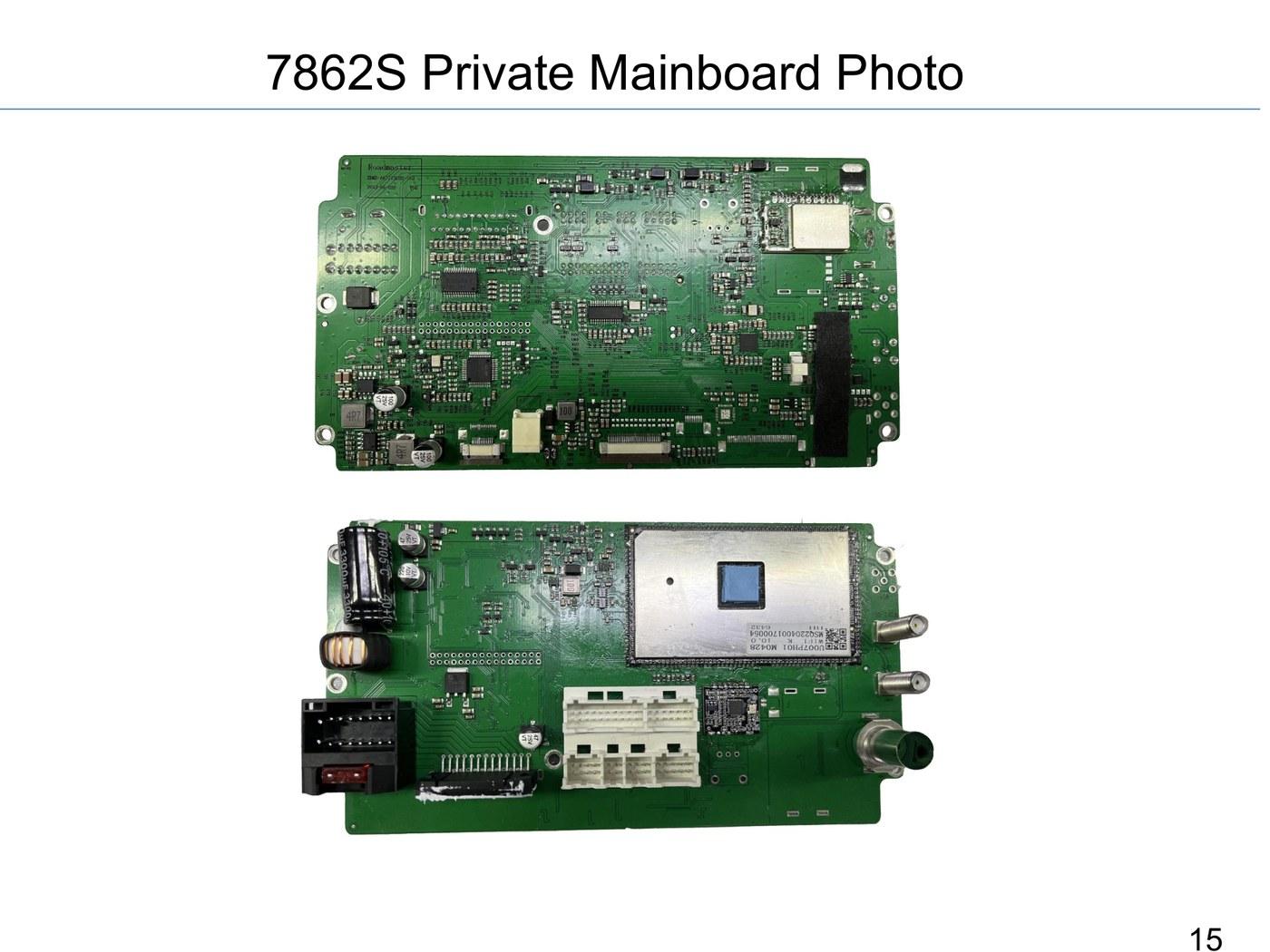

Private mainboard with dual heat sinks covering the SoC and the TDA7851 amplifier stage.

2 · An AI-ready ADAS camera pipeline

Safety features are the single strongest upsell in aftermarket infotainment right now, and they only work if the head unit can actually see the road. The ZT-A86 takes front and rear camera inputs (with AHD high-definition input available), supports 360° surround view and integrates DVR recording — which is the hardware foundation for AI driver-assistance functions such as forward-collision and lane-departure warning.

Front / rear camera and DVR inputs — the basis for ADAS awareness and 360° surround view.

3 · Bluetooth 5.0 done properly (RTL8761)

The ZT-A86 uses the RTL8761 chipset with Bluetooth 5.0 rather than a generic combo module. In practice that means faster pairing after ignition, a stable dual-profile link so phone calls and music can coexist, and enough throughput headroom for low-latency audio streaming.

RTL8761 Bluetooth 5.0 — simultaneous call and media profiles, fast re-pair on ignition.

4 · DSP tuning for people who care about sound

An optional DSP sound-effects module turns the ZT-A86 into a proper source unit: equalisation, time alignment, and sound-stage adjustment so the listening position can be tuned to the driver’s seat rather than the centre of the dash.

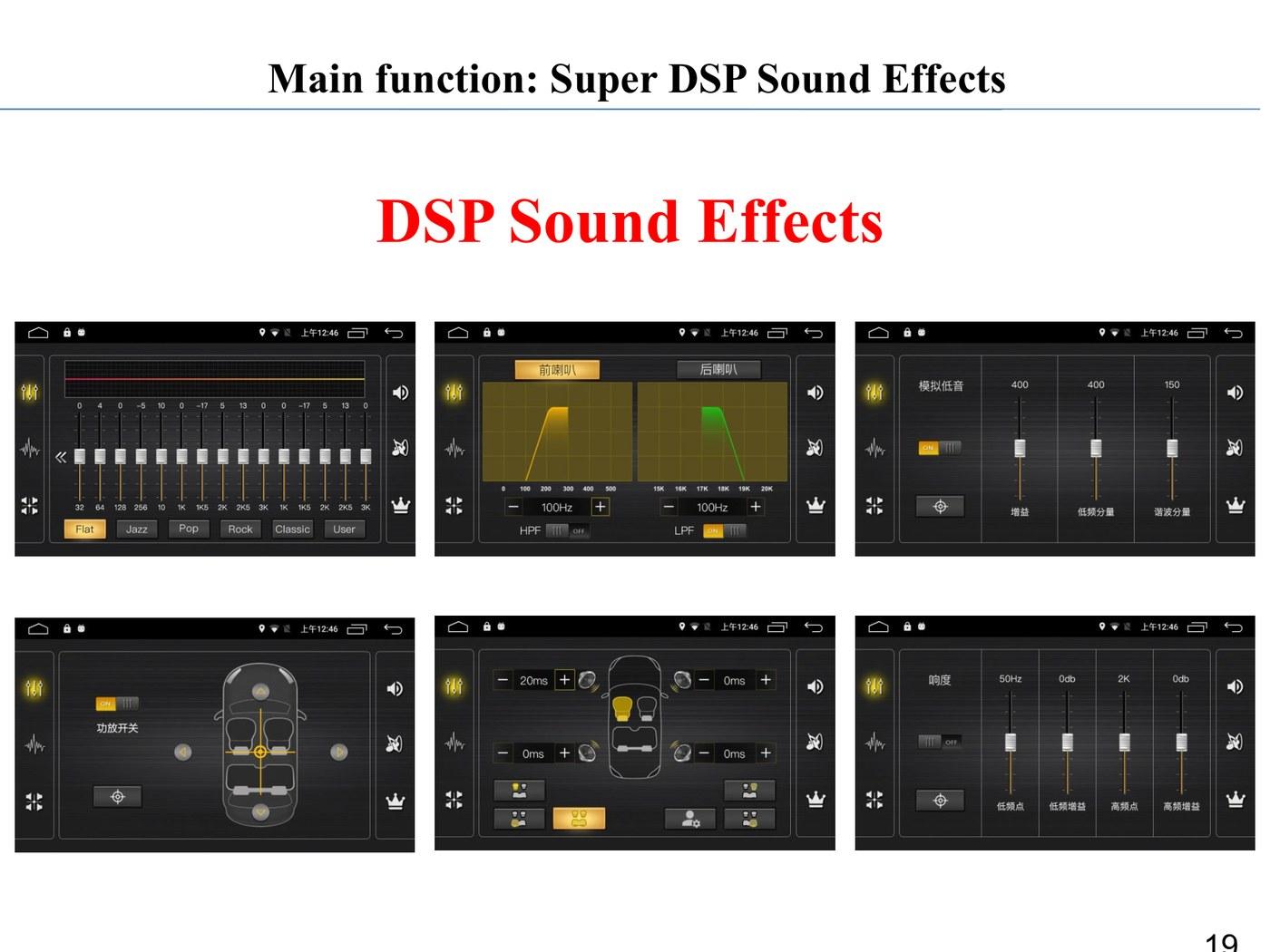

DSP module: EQ, delay alignment and sound-stage control, tuned from the head unit UI.

5 · A real amplifier: TDA7851, 4 × 25W

This is the part most competitors quietly downgrade. The ZT-A86 runs the TDA7851 automotive amplifier IC at 4 × 25W output — enough to drive factory speakers with authority, so an external amp becomes an upgrade the customer chooses rather than a fix they resent.

The Full Signal Chain

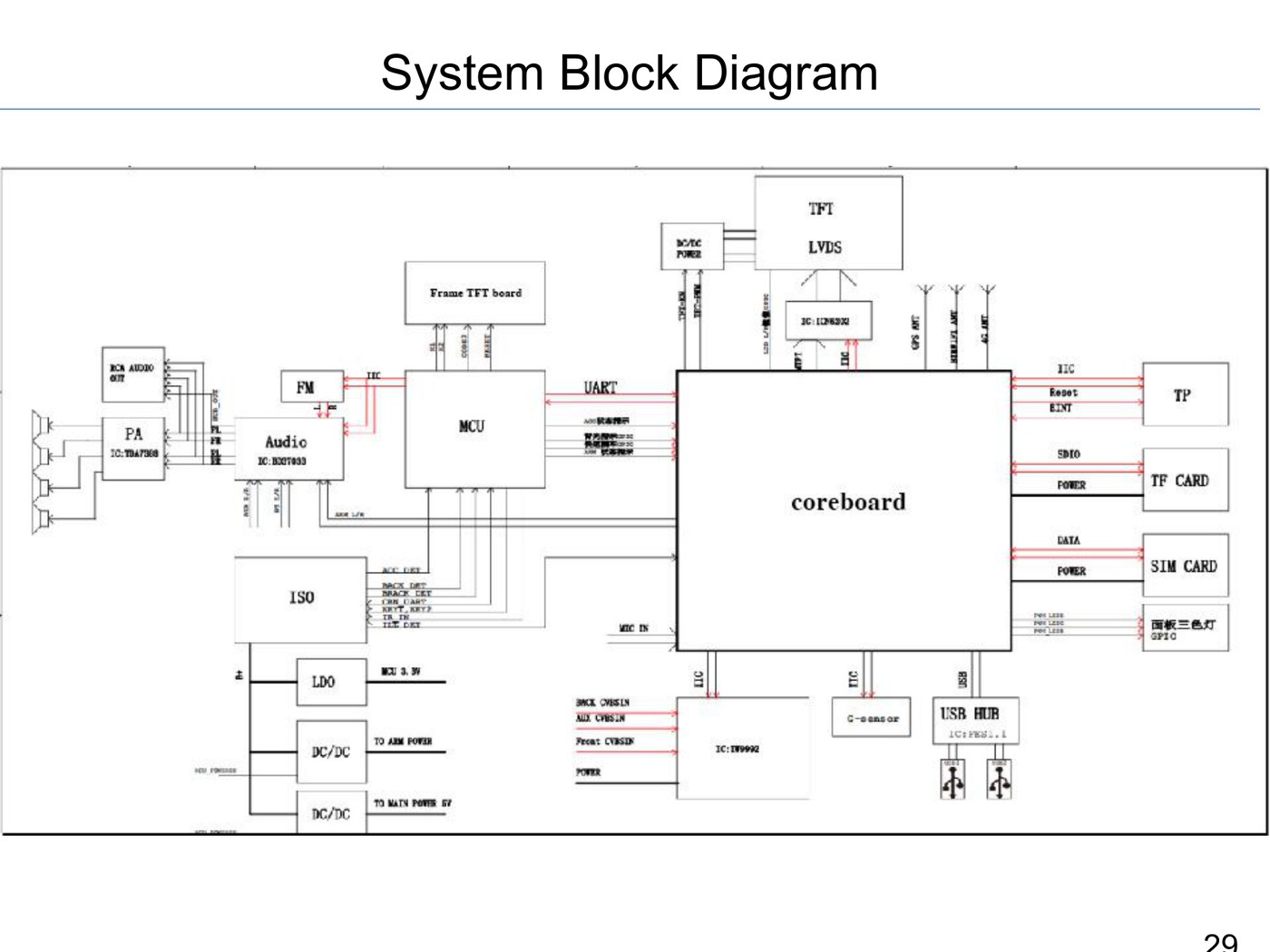

System block diagram: 7862S core → DSP → TDA7851 → speakers, with independent camera, radio and network paths.

A head unit is only as good as what it can talk to. The ZT-A86 covers the full aftermarket signal set: 4G LTE plus dual-band Wi-Fi (2.4/5 GHz, 802.11a/b/g/n/ac), GPS navigation, an ST 7708L / 7786 radio tuner covering FM and AM across Asia, Europe, Russia, USA and Japan region tables, dual AUX audio inputs, front and rear camera video inputs, and two video outputs for headrest or co-pilot screens.

Add wireless CarPlay and Android Auto, plus an IPS / QLED panel at 1024×600 or 1280×720, and the ZT-A86 covers both modern phone-mirroring buyers and traditional installers who still want a proper radio.

Technical Specifications

Who Buys It, and Why

OEM / ODM: Build It As Your Own

ZESTECH runs the whole chain in-house — tooling, plastic injection, metal stamping, 8 assembly lines and dedicated SMT capacity backed by an engineering team of 30+ and IATF 16949 / ISO 9001 quality systems. That means the ZT-A86 can ship as your brand, not ours:

Let’s Talk About Your Market

Tell us which vehicle platforms you cover and your target price point. We will send the ZT-A86 full specification pack, current lead time, MOQ and private-label options — normally within one working day.

Shenzhen Zest Technology Co., Ltd. — a national high-tech enterprise founded in 2010, integrating independent R&D, mould development, manufacturing and worldwide after-sales for intelligent mobility and automotive electronics.
