Designed for vehicles that already ship with wired CarPlay or Android Auto, the AX1800 Wired-to-Wireless Adapter from Shenzhen ZESTECH Technology Co., Ltd. requires no disassembly and no rewiring. Plug it in, and the entire existing fleet steps into the wireless era.

Introduction: A Single Cable Is Holding Back the Smart Cockpit

Today's cars keep getting better at being smart. Screens are larger, voice assistants are more capable, and navigation, music, podcasts and messaging have all moved onto the dashboard. And yet, for millions of drivers, something always feels slightly off — every single trip begins with digging a cable out of a bag or a console.

That cable is a nuisance on a ten-minute errand and an eyesore on a long drive. Over time it wears out the phone's charging port, frays, and leaves the centre console permanently untidy. What makes it worse is the irony: a huge number of cars already on the road natively support CarPlay or Android Auto — they are simply locked to a wired connection, and that one word pins the entire experience to the previous decade.

Is there a way to give these cars wireless connectivity without replacing the head unit, cutting into the dash, or voiding anything?

The ZESTECH Wired-to-Wireless CarPlay / Android Auto Adapter answers with a single sentence: plug it in, and you're done.

I. Four Frictions Drivers Feel Every Single Day

Wireless connectivity is not a decorative feature. It removes friction that drivers encounter constantly.

● Tedious to operate. Plugging in is an extra step before every drive — and one that passengers in the back seat simply cannot perform.

● It ruins the interior. A cable dangling across the centre console makes even a premium cabin look cluttered.

● It wears out the port. Two or three plug-ins a day adds up to over a thousand cycles a year. Loosening and poor contact become almost inevitable.

● The cost is too high for short trips. A ten-minute drive still requires the full ritual: find the cable, unlock the phone, wait for the handshake. The effort outweighs the reward.

What drivers actually want is refreshingly simple: automatic connection on entry, and zero interaction afterwards. That is precisely the starting point for the AX1800.

II. One Adapter Completes the Wireless Upgrade

The ZESTECH AX1800 Adapter is a small, rectangular black module — but the job it does inside is far from trivial. It performs a complete wireless protocol bridge and translation between the phone and the head unit.

Its operating logic can be summed up in two lines:

● Bluetooth handles first-time pairing. The phone and adapter establish an initial connection over Bluetooth, completing identification and handshake.

● Wi-Fi carries the high-speed data. Once the handshake is done, the data path moves to Wi-Fi, delivering the bandwidth and responsiveness needed for map rendering, audio streaming and voice commands.

After the first pairing, the adapter reconnects automatically on every subsequent drive. Start the engine, leave the phone in your pocket, and the head unit is already sitting in wireless CarPlay or wireless Android Auto. For both iOS and Android users, this is the kind of upgrade you cannot go back from.

III. The Foundation: AX1800 Chipset + Dual-Band Wi-Fi 6 + Bluetooth 5.4

Turning a wired link into a wireless one is not hard because of connecting — it is hard because of staying connected. The AX1800's reliability comes from three layers working together.

1. ZESTECH AX1800 Series Chipset: 1.0GHz of Processing Power

Optimised specifically for in-car wireless connectivity, the AX1800 series chipset delivers 1.0GHz of processing power and runs three tasks in parallel inside the adapter:

1. Stable Bluetooth pairing;

2. Stable Wi-Fi data transmission;

3. Stable CarPlay / Android Auto protocol conversion.

Protocol conversion is the most underestimated of the three. The head unit speaks a wired protocol stack; the phone speaks a wireless one. Something has to translate and relay between them in real time, and a stumble in either direction shows up immediately as stutter, dropout or a black screen. The value of a dedicated chipset is turning "it runs" into "it runs reliably for hours on end."

2. Dual-Band Wi-Fi 6: 2.4GHz and 5GHz, Each With a Job

The adapter supports both 2.4GHz and 5GHz bands and divides the work by purpose:

Wireless channel, Bluetooth First-time pairing Connection established quickly, no repeated steps

Wi-Fi (2.4GHz / 5GHz)

High-speed data transfer

Music, navigation and voice stay smooth

Wi-Fi 6, the newer generation of the standard, brings meaningful gains in interference resistance, concurrency efficiency and latency control over its predecessor. In dense traffic with congested airwaves, that difference shows up as navigation that keeps rendering and music that keeps playing.

3. Bluetooth 5.4 (BTDM): Low Latency, Low Power

Bluetooth 5.4 handles pairing and low-rate control signalling. Combined with a low-power design, it keeps the adapter cool and frugal even when continuously powered — no measurable impact on the vehicle battery or the car's electrical environment.

IV. Six Core Capabilities, One Complete Experience

Capability

Detail

AX1800 series chipset

1.0GHz processing, purpose-tuned for in-vehicle use

Dual-band Wi-Fi 6

2.4GHz and 5GHz, fast and stable

Bluetooth 5.4 (BTDM) pairing

Quick pairing, low latency, low power consumption

Dual-interface design

USB-A and Type-C variants to match different vehicle ports

Vehicle compatibility

Works with 98% of wired CarPlay / Android Auto vehicles

Low-power stable operation

Cool and efficient under continuous power, built for permanent installation

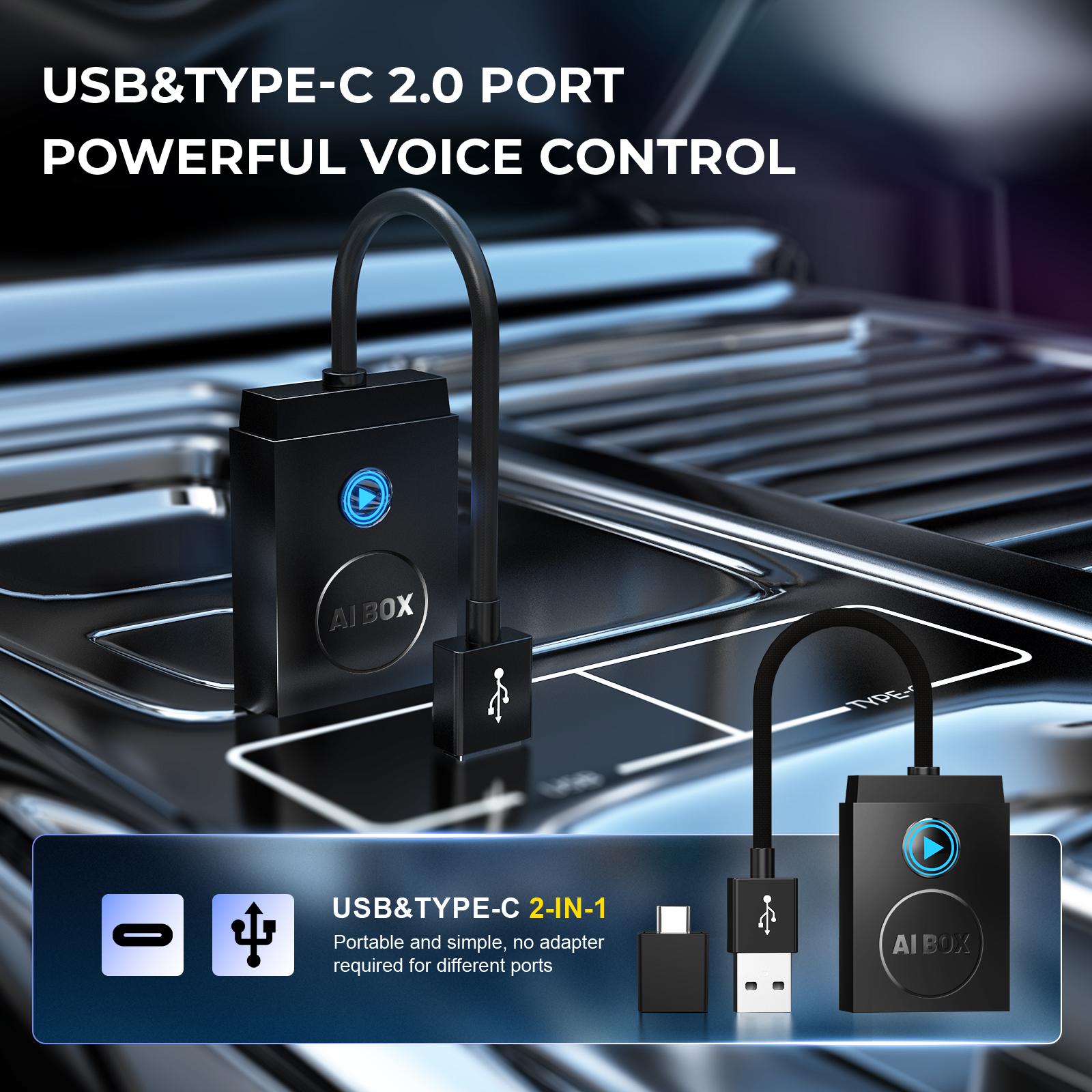

The dual-interface design is a detail many competing products overlook. Factory CarPlay ports come in both USB-A and Type-C; offering both form factors means distributors do not need to stock two SKUs for a port difference, and buyers never have to worry about ordering the wrong version.

V. Three Steps, and You're Connected

The more sophisticated the technology, the simpler the interaction should be. The AX1800 compresses the entire process into three steps — and you only walk through them once:

4. Start the vehicle. Turn on the engine and wait for the head unit to reach its home screen.

5. Plug in the adapter. Insert it into the car's wired CarPlay / Android Auto port.

6. Pair. Enable Wi-Fi and Bluetooth on your phone, search for smartAdapter_****, and complete pairing.

After that first pairing, every subsequent drive connects automatically — no need to touch your phone at all. There is no disassembly, no rewiring, and no modification to any part of the vehicle, and every original function continues to work exactly as before. That is what "lossless upgrade" really means.

VI. Status at a Glance: Multi-Colour Indicator

A mature car accessory should always be able to answer the question: what are you doing right now? The AX1800 uses a three-colour indicator to separate states:

● Cyan: lights up when powered, confirming normal supply;

● Green: CarPlay connection status;

● Blue: Android Auto connection status.

The rhythm carries information too: blinking means a connection is being established; solid means the connection is live. No need to unlock the phone or dig into settings — one glance at the adapter is enough.

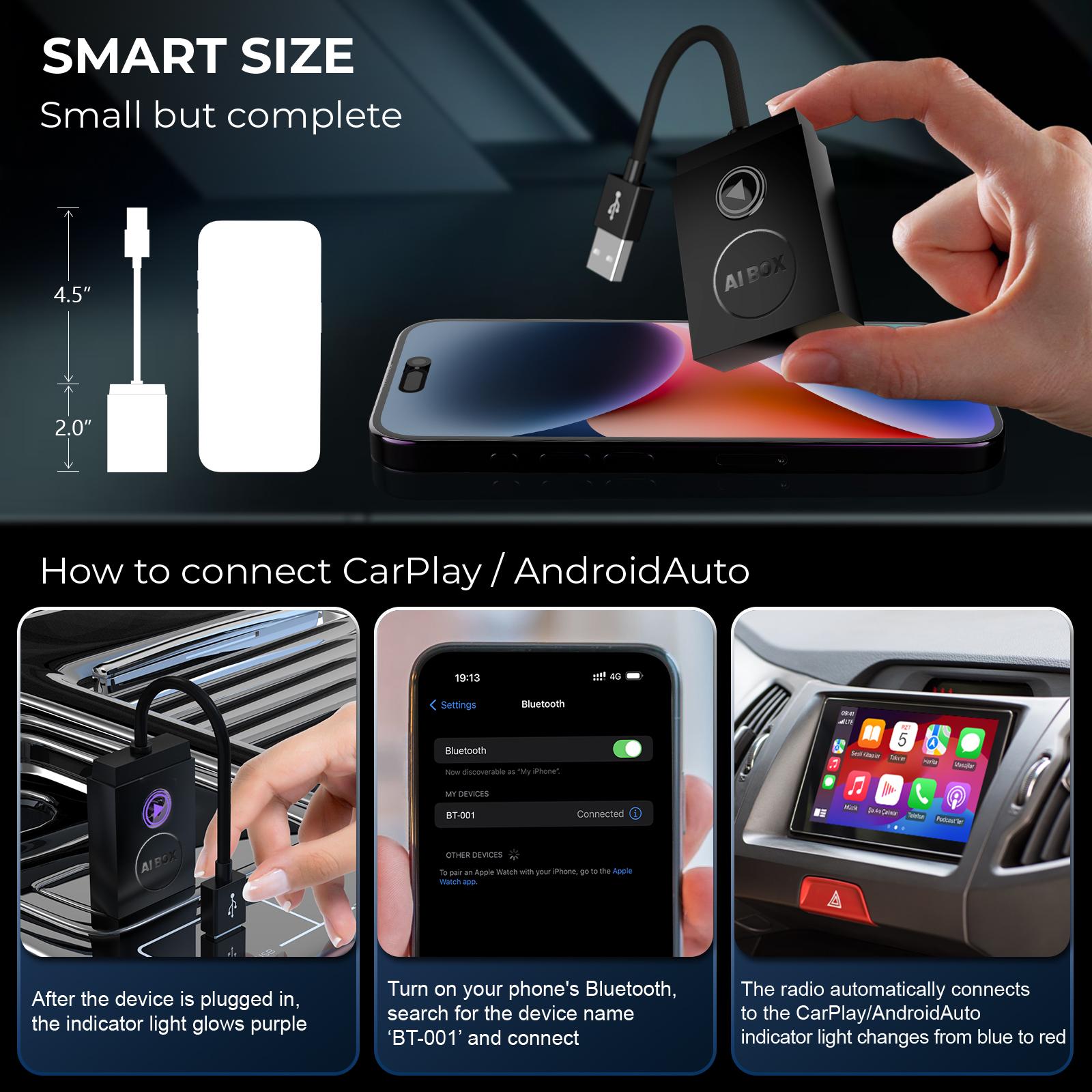

VII. Small Enough to Disappear

The worst thing an in-car accessory can do is announce itself. A bulky module jutting out of the centre console is itself a form of interior damage.

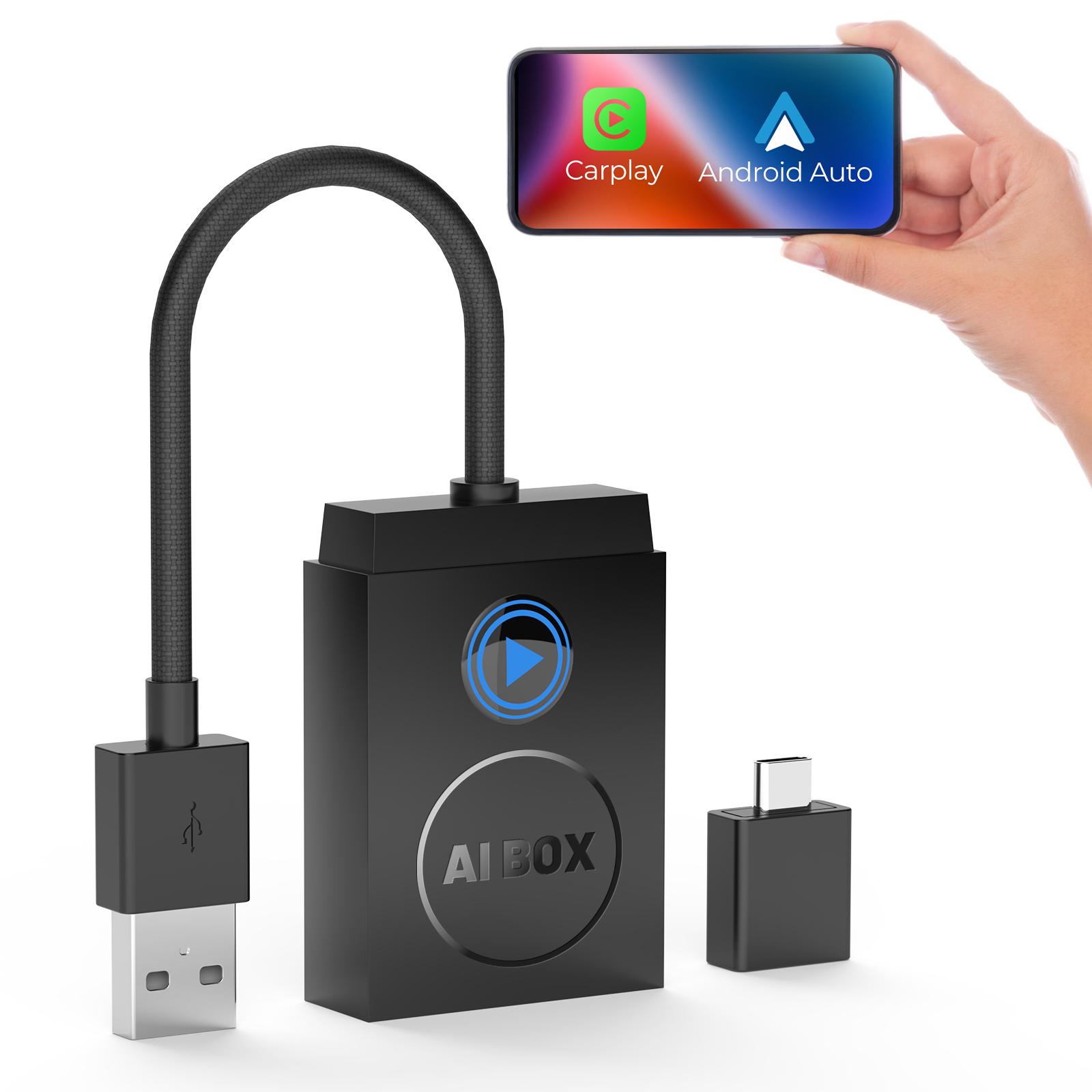

The AX1800 uses a compact rectangular black housing that occupies no meaningful console space once inserted and blends naturally into dark interiors. Its internal PCB measures roughly 20.0mm × 18.0mm — a compact layout that makes the small form factor possible.

Structure and electrical specifications:

Parameter

Value

Form factor

Compact rectangular black housing

PCB size

Approx. 20.0mm × 18.0mm

Interface

USB-A / Type-C (dual options)

Operating voltage

4.5V–5.5V, typical 5V

Operating current

Typical 200mA

Operating temperature

Typical -10°C to 70°C

Storage temperature

Typical -20°C to 80°C

Together, these figures point at one goal: long-term reliability in an automotive environment. Whether it is a cabin baking in summer sun or a cold start on a winter morning, the voltage, current and thermal margins leave enough headroom for daily commuting, long-distance travel and extreme temperature scenarios alike.

VIII. 98% Vehicle Coverage: More Than Just Drivers

The AX1800 is designed for vehicles equipped with factory wired CarPlay or Android Auto, with a compatibility rate of 98%. That makes it a natural fit across a range of use cases:

● Wireless upgrade for family cars: cut the cable, plug in and enjoy.

● Head-unit expansion for new-energy vehicles: fill the gaps in the factory infotainment system and connect the in-car ecosystem without boundaries.

● Smart upgrade for used cars: give an older vehicle a fresh, intelligent driving experience and a perceived tech boost at low cost.

● 4S dealership value-add installation: an optional upgrade at new-car delivery that lifts aftersales attach rates.

● Cross-border e-commerce and retail channels: a globally sellable product across online and offline channels.

On the commercial side, the AX1800 also leaves clear room to grow, with three parallel tracks: wireless upgrades for individual owners, automotive accessory channel sales (4S dealership add-ons, cross-border e-commerce platforms), and OEM / ODM brand customisation (extending an existing in-car connectivity product line). It works as a volume standard product, and it works as a branded custom product.

Conclusion: Small Device, Big Upgrade

The story of automotive intelligence is usually told through what new cars ship with. But for the hundreds of millions of vehicles already on the road, a genuine upgrade should not require buying a new car.

The value of the AX1800 Wired-to-Wireless CarPlay / Android Auto Adapter is that it compresses an expensive cockpit upgrade into thirty seconds of plug-and-play. No disassembly, no rewiring, every original function preserved — and yet navigation, music and voice now flow wirelessly.

Going from wired to wireless is not merely about removing a cable. It changes the question from "what do I need to do after getting in the car?" to "nothing at all."

Small device. Big upgrade.

This article was prepared based on the AX1800 Wired-to-Wireless CarPlay / Android Auto Adapter product presentation by Shenzhen ZESTECH Technology Co., Ltd.
