4CH × 75W: What a Real Car-Grade DSP Amplifier Adds to Your Sound
Product Features
-
The ZESTECH ZT-BOX03 packs a 4-channel 45W/75W amplifier, 24-bit DSP with 10-band EQ, SPDIF optical and Bluetooth 5.2 inputs, and six-layer protection into one compact plug-and-play aluminum box — no wire cutting required.
Product Introduction
ZT-BOX03 Compact DSP Digital Amplifier — amplification, DSP tuning and intelligent control in one compact unit.
What Exactly Is the ZT-BOX03?
The ZT-BOX03 is a 4-channel automotive DSP power amplifier engineered for sound-quality upgrades on vehicles that keep their factory head unit. In one ultra-compact CNC aluminum chassis it integrates: a 4×45W nominal / 4×75W max Class-D output stage, a 24-bit DSP with a 10-band equalizer and time alignment, three audio input paths (analog Line IN, SPDIF optical, Bluetooth), and a full automotive-grade protection suite. It drives front and rear speakers directly from the OEM amplifier connection point, using a vehicle-specific harness — plug and play, with no modification to the original car system.
The Problems It Solves
|
1Factory Power Is Insufficient OEM head units rarely deliver real driving power. The ZT-BOX03 adds up to 4×75W max @ 4Ω/14.4V of clean output. |
2Distortion at High Volume With THD as low as ≤0.01% @ 1W and a 96dB signal-to-noise ratio, music stays clean even when you turn it up. |
|
3No Way to Tune the Sound A built-in 10-band EQ, delay adjustment and preset sound styles let each driver match the system to the cabin — not the other way around. |
4Upgrades Cost Too Much Amplifier + DSP processor + wiring + labor is the traditional route. BOX03 is one device, one harness, one installation. |
Built on a Real Car-Grade Hardware Platform
Industrial design: CNC aluminum chassis, optimized heat-dissipation fins, automotive-grade components.
Every detail of the ZT-BOX03 is engineered for the harsh realities of the automotive environment — vibration, heat, voltage fluctuation and years of daily use.
|
24-bit DSP High-precision digital signal processing built on the BP1548C2 DSP chip. |
ACM9634AQ1 Power IC Automotive-certified amplification with 90%+ conversion efficiency — more output, less heat. |
CNC Aluminum Chassis Superior durability with heat-dissipation fins and a 4-layer PCB inside. |
Why efficiency matters in a car
A 90%+ efficient output stage converts far more of the car’s 12V supply into music and far less into heat. That means stable long listening sessions, smaller thermal stress on the chassis, and no need for a bulky external heatsink — which is exactly how BOX03 stays compact enough to hide almost anywhere in the cabin.
DSP Audio Processing: Tune the Sound, Not Just the Volume
24-bit DSP resolution with a 10-band equalizer from 50Hz to 15kHz, each band adjustable for gain and Q-factor.
- ✓10-band equalizer — bands at 50Hz, 100Hz, 200Hz, 500Hz, 1kHz, 2kHz, 4kHz, 8kHz, 12kHz and 15kHz for fine-grained frequency control.
- ✓Precision delay adjustment — time alignment so the soundstage images correctly from the driver’s seat, not from the nearest door.
- ✓Tone presets (+/−7dB) — Classical, Jazz, Heavy, Normal, Pop and Rock one-touch styles.
- ✓Full-range fidelity — 20Hz–20kHz frequency response, 96dB SNR and 85dB channel separation.
Three Ways In: Line, Optical, Bluetooth
Whatever the source, BOX03 has a clean path for it — and the installer does not have to choose just one.
- ✓Line IN — analog input that integrates directly with the factory head unit (input impedance 2–16Ω).
- ✓SPDIF optical input — supports 96kHz–192kHz standard digital audio for a pristine, interference-free signal path.
- ✓Bluetooth — SBC/BLE, V3.2–V5.2 compatible for convenient wireless streaming.
- ✓USB Type-C — 27W output under PD3.0 (up to 9V/3A) to keep devices charged.

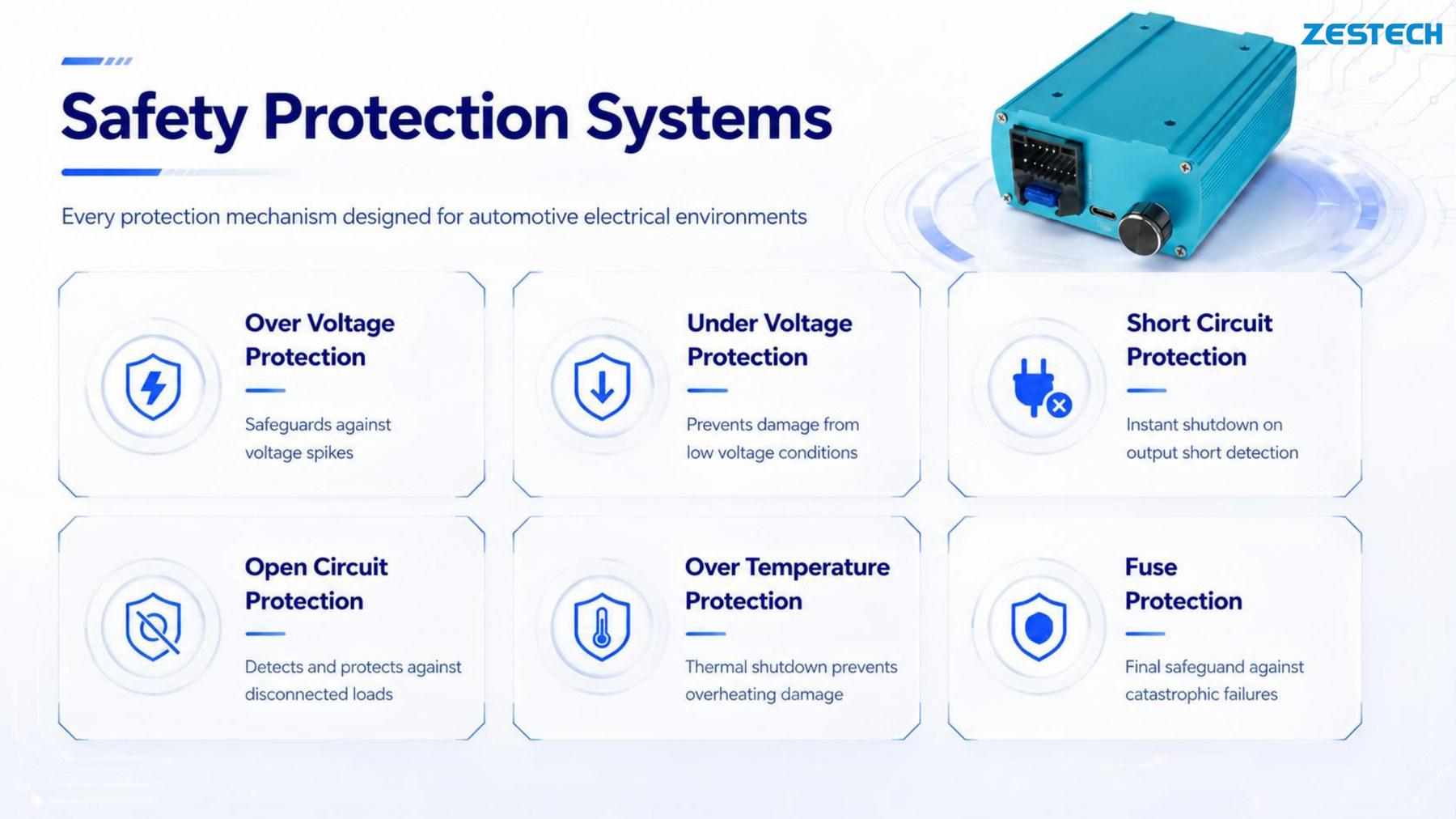

Six-Layer Protection for the Real-World Car
Six-layer protection system: over/under voltage, short circuit, open circuit, over temperature and fuse protection.
Car electrical systems are anything but stable — cold cranking, load dumps and miswired speakers are everyday events. The ZT-BOX03 guards against all of them: over-voltage, under-voltage, short-circuit, open-circuit, over-temperature and fuse protection. Operating range is DC 12V (9–16V) at −20°C to +80°C, with standby current of just ≤0.1mA so it never drains the battery.
Installation in Five Steps — No Wire Cutting
Plug-and-play installation: factory connector compatibility, no wire cutting, original warranty preserved.
- 1. Locate the factory amplifier connection point — identify the OEM amplifier location in the vehicle.
- 2. Connect BOX03 with the vehicle-specific harness — plug-and-play, no wire cutting required.
- 3. Mount the unit — the compact chassis fits multiple positions under seats or in the trunk.
- 4. Configure DSP settings via the app — smartphone app for personalized tuning.
- 5. Enjoy the upgraded sound — premium audio instantly, with the original system and warranty untouched.
Product Introduction
Where It Fits
- ✓Private vehicles — daily-driving sound quality without replacing the factory radio.
- ✓Taxi & ride-sharing fleets — a durable upgrade that survives high-usage commercial duty.
- ✓Luxury upgrades — premium listening for owners who want more from their cabin.
- ✓Audio enthusiasts — a clean, powerful foundation for advanced custom builds.
- ✓Aftermarket retailers & installers — one SKU that replaces amplifier + DSP + wiring bundles, with fast, low-risk installation.
Why Choose ZESTECH
|
OEM / ODM Ready Logo branding, custom firmware, tailored EQ presets, packaging design and region-specific connectors. |
Manufacturing Strength 4 SMT lines + 8 assembly lines, 600,000 units annual capacity, full in-house tooling and injection. |
Quality & Certification ISO9000 & TS16949 systems; products certified to CCC, FCC, CE, E-Mark and NTRA. |
ZESTECH (Shenzhen Zest Technology Co., Ltd) is a national high-tech enterprise specializing in automotive electronics R&D and manufacturing, serving 50+ global markets with 100+ OEM partners. Whether you need a trial order for your retail shelf or a tailored fleet program, our engineering team supports you from sample to after-sales.
Let’s Talk About Your Project
Tell us your market, target vehicle models and estimated volumes — we will reply with the ZT-BOX03 quotation, harness options and OEM customization plan. Pricing is provided by inquiry only, so you always get a number matched to your order.
