Built Between the Head Unit and the Speakers

Most factory head units are competent source devices and weak amplifiers — they simply do not have the output power to make good speakers move real air. The BOX02 is a dedicated digital power amplifier module for car audio systems, aimed squarely at improving the output power and driving capability of the original setup, delivering clearer and more powerful listening.

Where it sits in the system

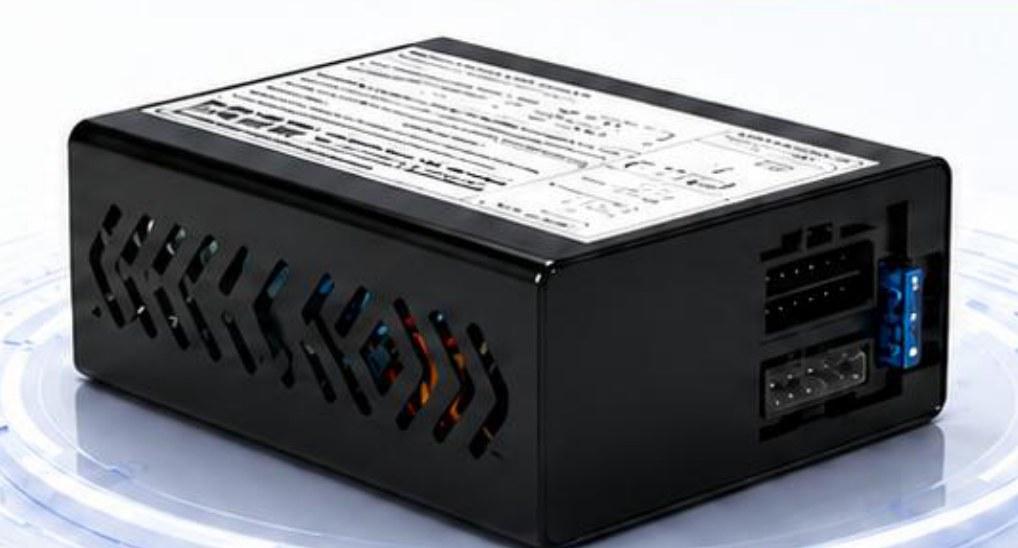

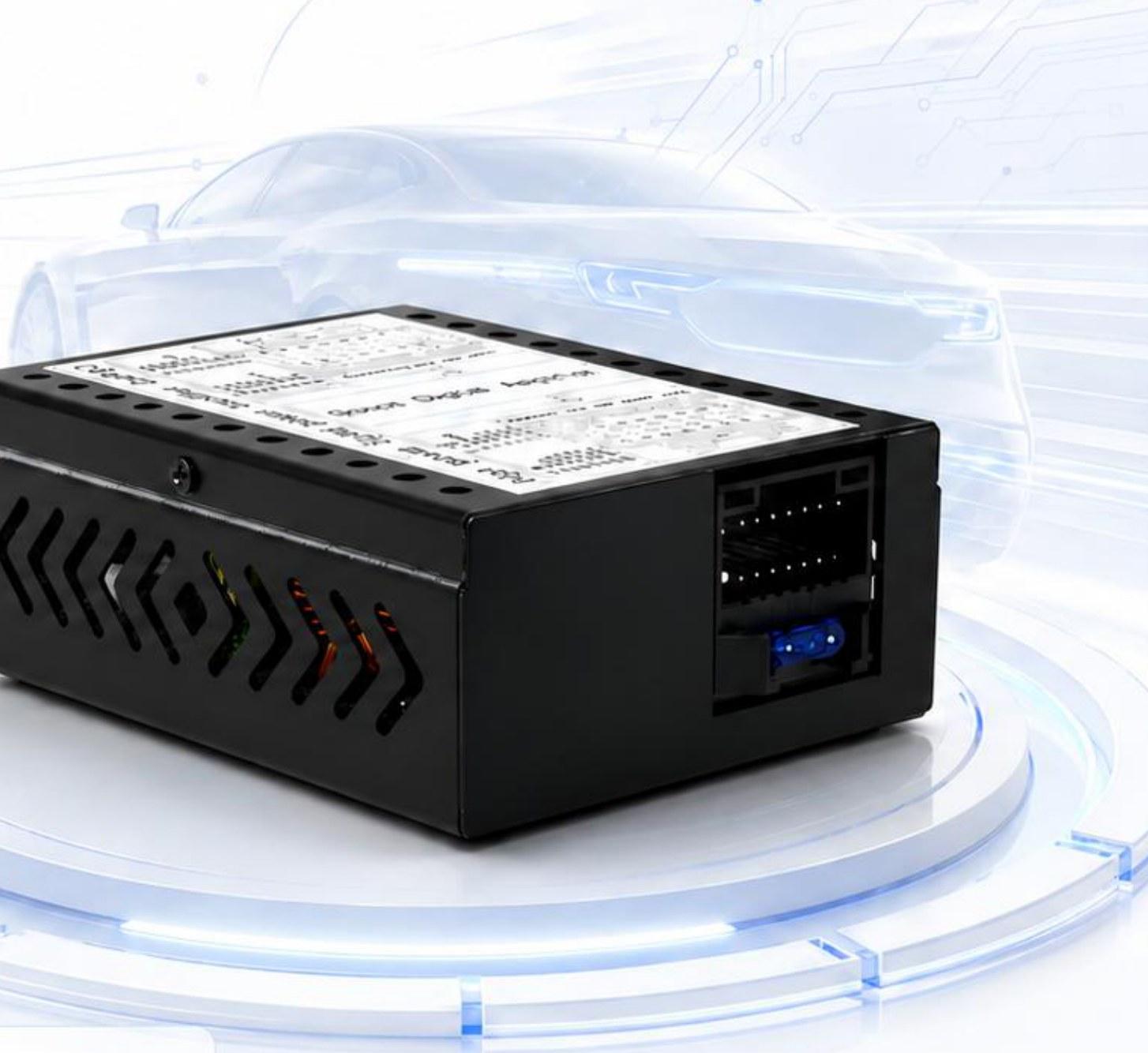

Compact metal enclosure — high-efficiency heat conduction on a module sized for hidden installation.

System Architecture: Four Independent Class D Channels

Inside the BOX02, a high-efficiency Class D digital amplification platform drives four channels independently — a stable, high-power audio output that does not depend on fragile factory electronics.

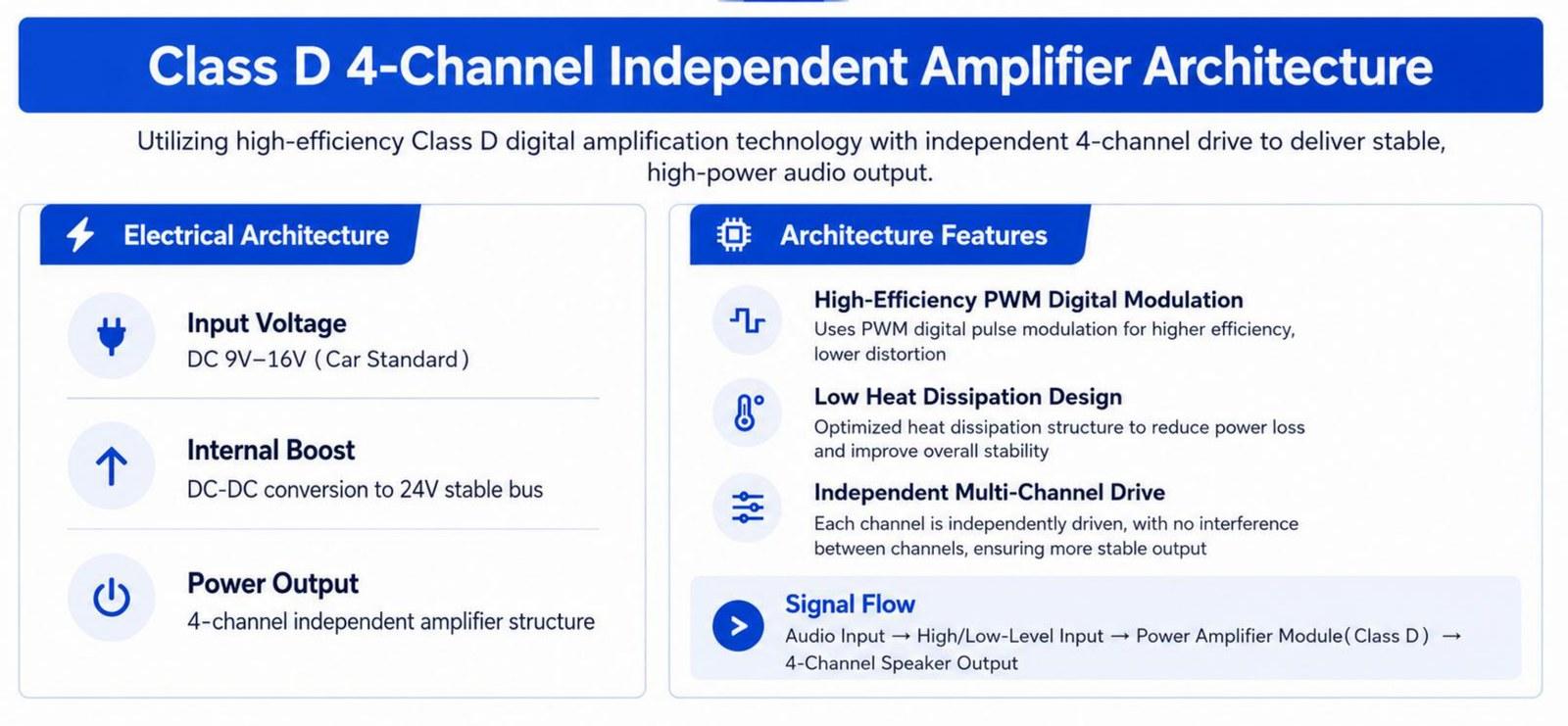

Electrical architecture and platform features of the BOX02 Class D 4-channel independent amplifier.

The electrical chain is deliberately simple and car-friendly: DC 9V–16V input matched to the vehicle standard, an internal DC-DC boost to a 24V stable bus, and four-channel independent amplification on top of it. The platform runs high-efficiency PWM digital modulation, keeps heat loss low, and each channel is driven independently with no interference between channels.

Core Electrical Performance

Numbers first, because this is where the upgrade actually happens. At a healthy 14.4V supply the BOX02 delivers 4 × 50W maximum output into 4Ω speakers, and still holds 4 × 30W at a resting 12V — enough real power to transform factory speakers without touching the head unit.

Efficiency That Works With the Car, Not Against It

Reduced heat, improved stability. Optimized thermal management with low quiescent current suppresses temperature rise, extends component lifespan and keeps long, high-load listening sessions stable. That matters in a car — an amplifier that runs cool is an amplifier that does not go into protection mode on a summer drive.

Friendly to small power systems. The wide 1A–10A dynamic load range adapts to compact vehicle power environments, providing an efficient, energy-saving amplification solution for entry-level and mid-range car audio builds.

Three-Band Tuning Without the Complexity

The BOX02 keeps sound shaping honest and analog: a ±7dB center potentiometer per band — clockwise to boost, counterclockwise to attenuate. No menus, no DSP software, no tuning experience required.

Low, mid and high bands with ±7dB analog adjustment — precise, vibrant and true-to-life.

Because the adjustment happens in the analog domain, there is no digital processing delay: the original frequency continuity of the recording is maintained end to end, and the result is a more natural sound response — the signal arrives at the speakers exactly as the head unit sent it, only louder and cleaner.

Intelligent Protection on Every Level

A power amplifier lives at the mercy of the vehicle electrical system — voltage spikes, heat, shorted speaker lines. The BOX02 answers with a multi-layer protection system that watches every failure mode separately:

One 16-Pin Harness: Interfaces and Wiring

Installation complexity is where upgrade amplifiers usually bleed hours. The BOX02 attacks that with a 16-pin car-grade wiring system that integrates power supply and audio signal transmission in one connector.

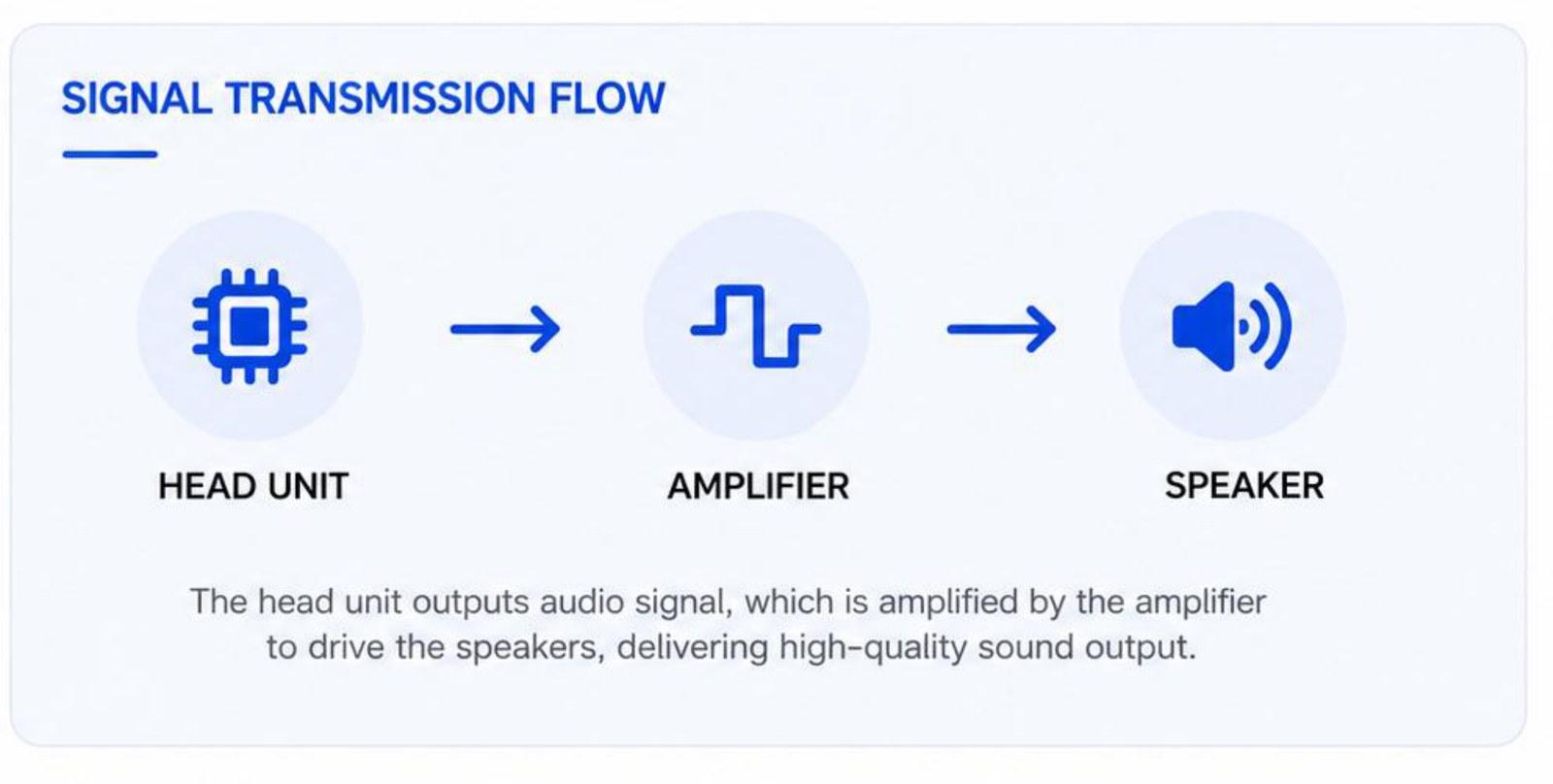

Head unit → amplifier → speaker — a short, clear, easy-to-troubleshoot signal chain.

On the output side the amplifier pairs with 4Ω8Ω speakers and is compatible with mainstream car head units — easy and worry-free installation on the vehicles installers already see every week.

Installation in Three Steps

No wiring modification. No DSP tuning foundation. The whole point of the BOX02 is that a competent shop — or a careful owner — can finish the upgrade in one visit.

Engineered to Survive the Road

Strict standards, stable and trustworthy — the BOX02 is built as industrial-grade equipment, not a consumer accessory, which is exactly what fleet, ride-hailing and OEM post-install programs need.

Where the BOX02 Fits

One module covers the whole spectrum of car audio upgrades — from a first-timer’ first system to structured OEM programs.

Factory upgrades, entry-level retrofits, business vehicles, ride-hailing fleets and OEM post-install programs.

Factory audio upgrades for vehicles with underpowered original configurations, keeping the original wiring structure while replacing speakers and adding amplification. Entry-level retrofits give new customers a high-value first step. Business vehicles gain the quiet, comfortable sound stage expected in MPVs and luxury sedans, while ride-hailing and rental fleets get durability that balances passenger experience with long-term driving comfort. And for OEM partners, the BOX02 ships as a standardized post-install kit that expands vehicle configuration tiers and after-sales value.

Core Advantages at a Glance

Technical, usage and system advantages of the BOX02 — the whole pitch on one card.

That is the whole proposition: real power, honest analog tuning, layered protection and an installation any shop can complete — in one compact, industrial-grade module.

Let’s Talk About Your Market

Tell us your vehicle platforms and target markets. We will send the BOX02 specification pack, harness documentation, current lead time, MOQ and private-label details — normally within one working day.

Shenzhen Zest Technology Co., Ltd. — a national high-tech enterprise founded in 2010, integrating independent R&D, mould development, manufacturing and worldwide after-sales for intelligent mobility and automotive electronics.
