Why the Entry Tier Decides Who Wins the Market

Walk any auto-parts street from Dubai to Santiago and the same pattern repeats: the volume is in the “ entry-level” head units, and the complaints are too. Slow boot, dropped calls, Wi-Fi that gives up through a dashboard, and a radio stage that makes factory speakers sound like a phone in a cup.

The ZT-A88 is our answer for the price band where every dollar of BOM is fought over — and where engineering discipline shows the most.

What the ZT-A88 Actually Is

The ZT-A88 is a native-Android car multimedia platform built on the Rockchip RK3326 quad-core SoC, running Android 11. Memory scales across 1GB / 2GB / 4GB LPDDR4X with 32GB / 64GB uMCP storage, which lets one SKU family serve replacement jobs, fleet builds and retail bundles without changing the harness or the mounting solution.

Rockchip RK3326 quad-core platform — tuned for stable navigation and media playback at entry level.

Display flexibility is where the platform earns its keep: one LVDS output (60-pin / 40-pin optional) plus one MIPI output support panels from 1024×600 up to 1600×720 across 7, 9 and 10-inch formats, with capacitive touch handled over IIC. One board, three screen sizes, four resolutions — that is how installers clear stock instead of hoarding variants.

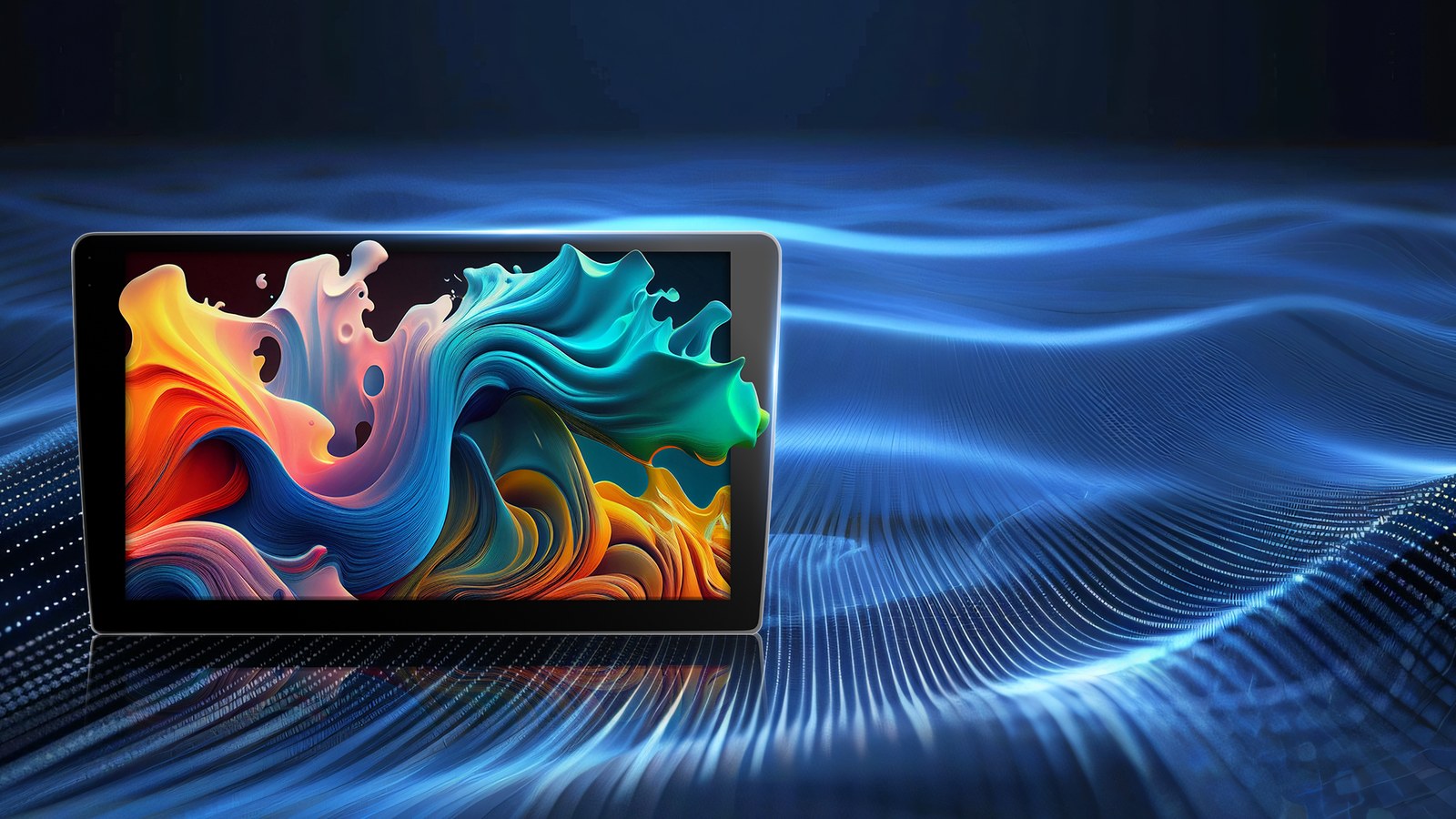

7 / 9 / 10-inch panel options at 1024×600, 1280×720, 1280×800 or 1600×720.

The Full Signal Chain

1 · Radio that still matters

The default UMW2652 tuner covers FM broadcast, with a reserved position for an external SI4755 radio module when a market needs AM or extra sensitivity. Radio refuses to die in South America, Africa and Russia — so the ZT-A88 treats it as first-class hardware, not an afterthought.

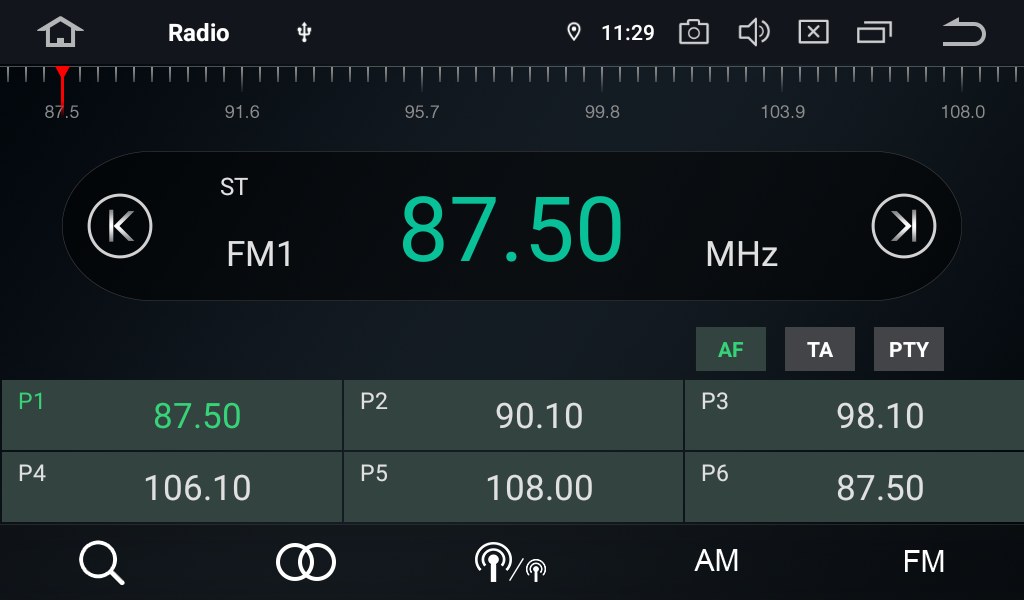

FM tuner UI with preset banks — SI4755 external module position reserved for AM markets.

2 · All four positioning systems

Navigation supports GPS, BeiDou, GLONASS and Galileo simultaneously. More constellations means faster first fixes in urban canyons and steadier tracks between high-rise blocks — a quiet spec point that drivers notice every single day.

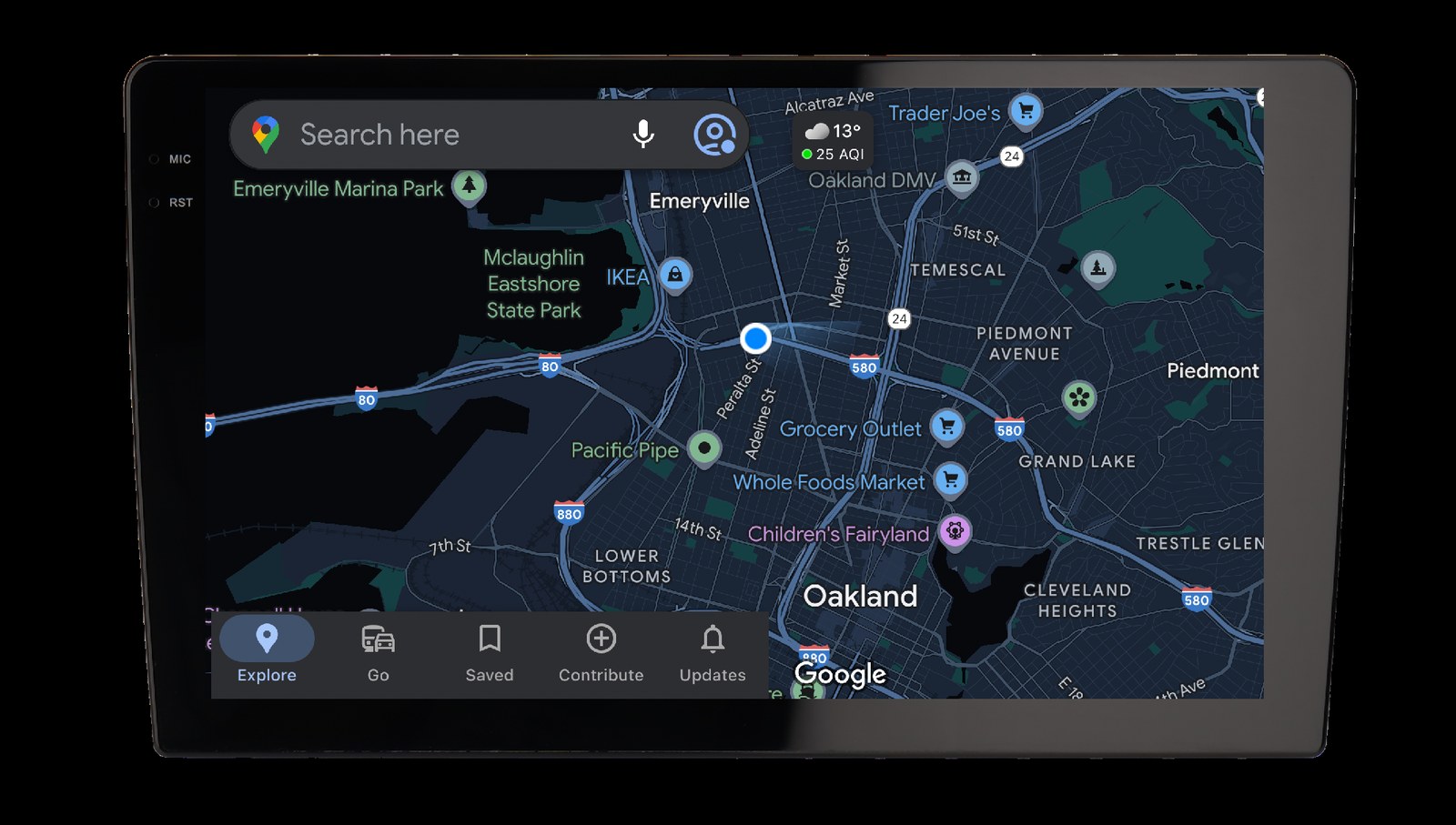

GPS + BeiDou + GLONASS + Galileo — online and offline map apps both supported.

3 · Audio out: 4 × 18W built in

The 7388 amplifier stage delivers 4 × 18W to the door speakers, with 3 line outputs and dedicated FL / FR / SUB export to an external amplifier. Input side carries 1 MIC analogue input and 2 line-ins. Video in accepts 2 channels of CVBS, AHD or TVI up to 1080P at 30fps, and USB-to-CVBS output lets the unit feed headrest screens without extra hardware.

4 × 18W output, 3– line out and FL/FR/SUB export to an external amplifier.

4 · Bluetooth 5.0-class connectivity

Bluetooth V2.1+EDR and V5.0 compliant stacks bring steadier calls, more fluent music streaming and video that does not stutter. Pairing survives ignition cycles, and the phone book loads without the ten-second wait budget units are known for.

Bluetooth 5.0-class module — stable calls and media over one link.

5 · Dual-band Wi-Fi as standard

The 2.4 GHz band brings anti-interference range through a metal dashboard; the 5 GHz band brings the throughput for maps, streaming and updates. 802.11 a/b/g/n/ac with AP / STA / P2P modes means the unit can share its own hotspot, join the customer’ router or link peer-to-peer — all from the same radio.

6 · Optional 32-band DSP

An optional DSP module with 32-band equalisation turns the ZT-A88 into a genuine source unit: per-band adjustment, sound-stage shaping and audio tuning that lets a modest speaker set punch far above its price.

DSP option: 32-band EQ, sound adjustment and audio tuning from the head unit UI.

Wireless-Ready CarPlay and Android Auto

CarPlay and Android Auto are supported as an option, giving the platform a phone-first face for buyers who live in their maps and playlists — while keeping the native Android launcher for everything else. It is the single most requested feature in this price band, and the ZT-A88 carries it without a hardware redesign.

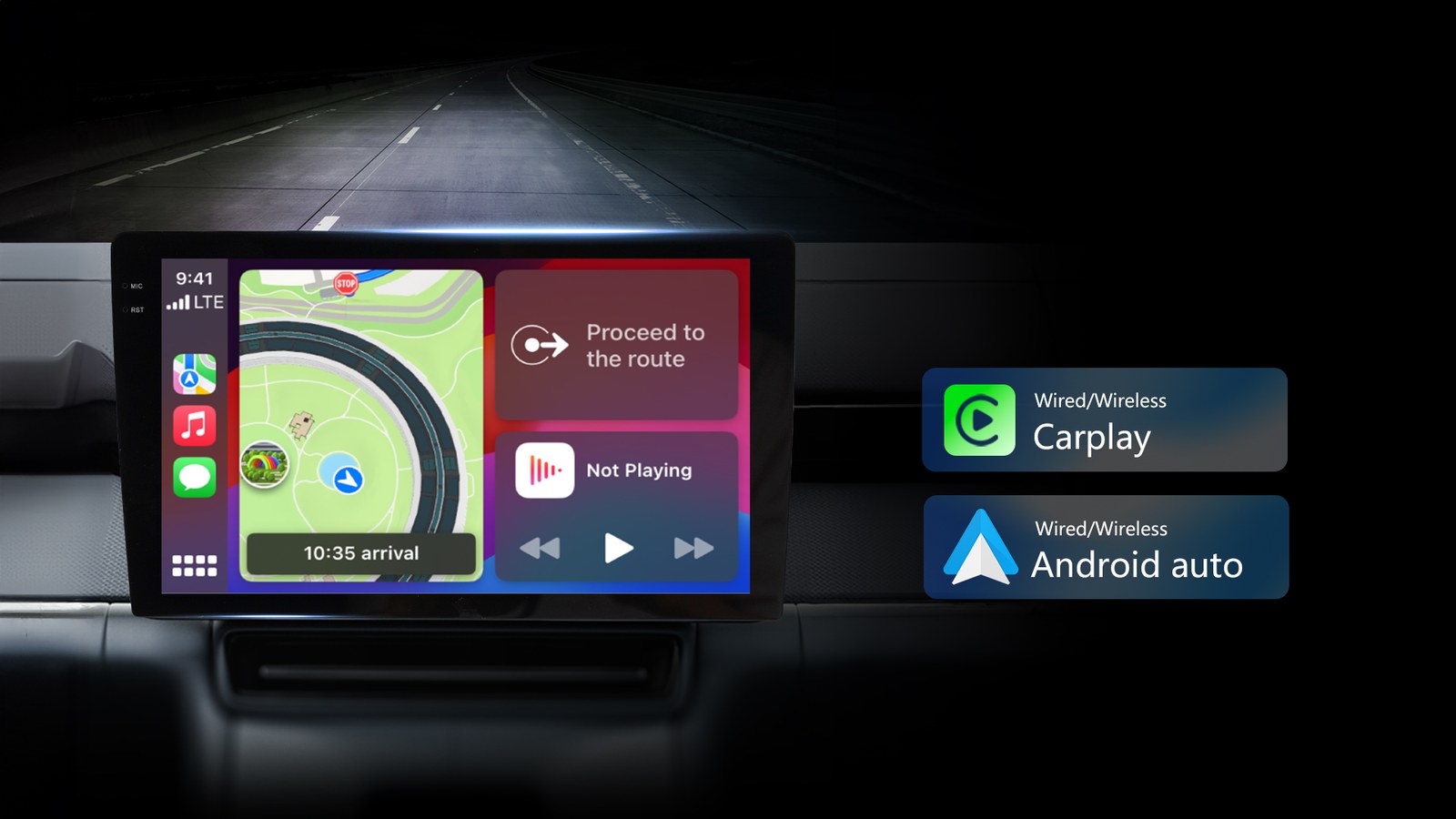

Optional CarPlay and Android Auto — the feature entry-level buyers ask for first.

Cameras and Expansion

The rear-camera path accepts AHD 720P at 25Hz, TVI 720P at 25/30Hz, CVBS NTSC/PAL and AHD 1080P at 25Hz — the formats installers actually stock. Two USB 2.0 ports handle dash-cam sticks, media drives and dongles, and the USB-to-CVBS bridge feeds external monitors. Reverse trigger brings the camera up in 3 seconds or less.

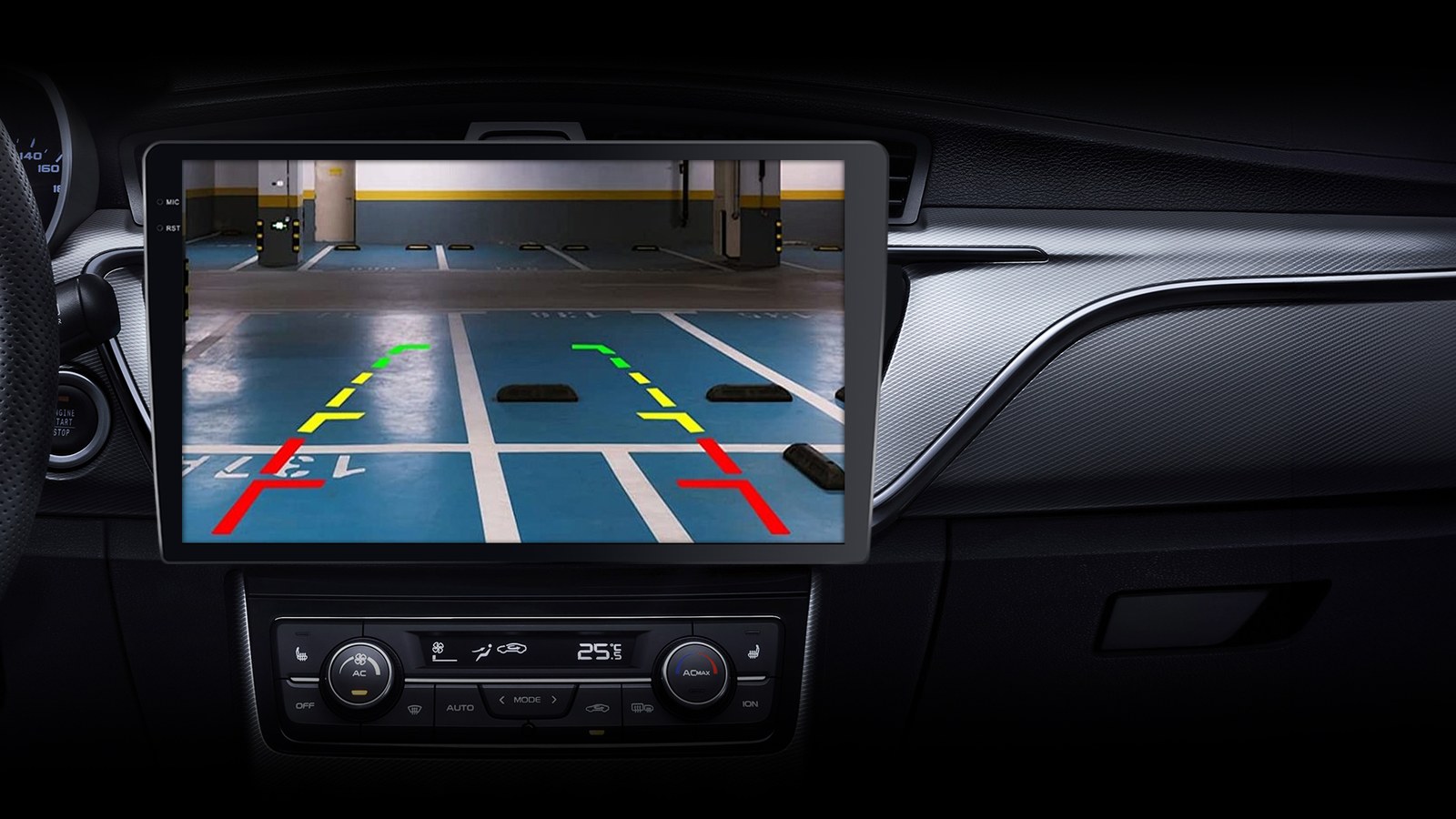

Rear-view camera: AHD 720P/1080P, TVI and CVBS — plus fast reverse wake-up.

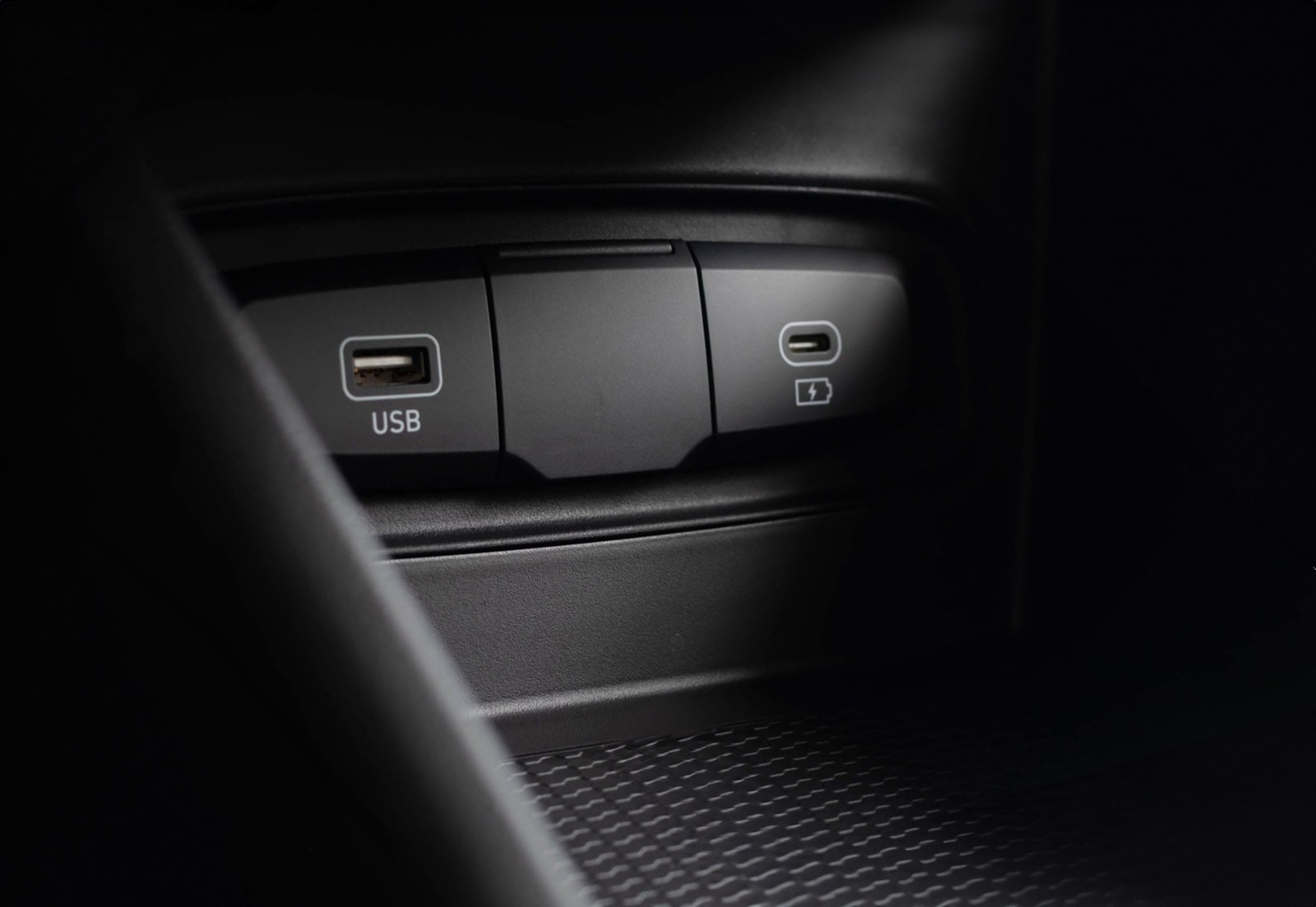

2× USB 2.0 ports for dash cams, media drives and mirroring dongles.

The Software Experience

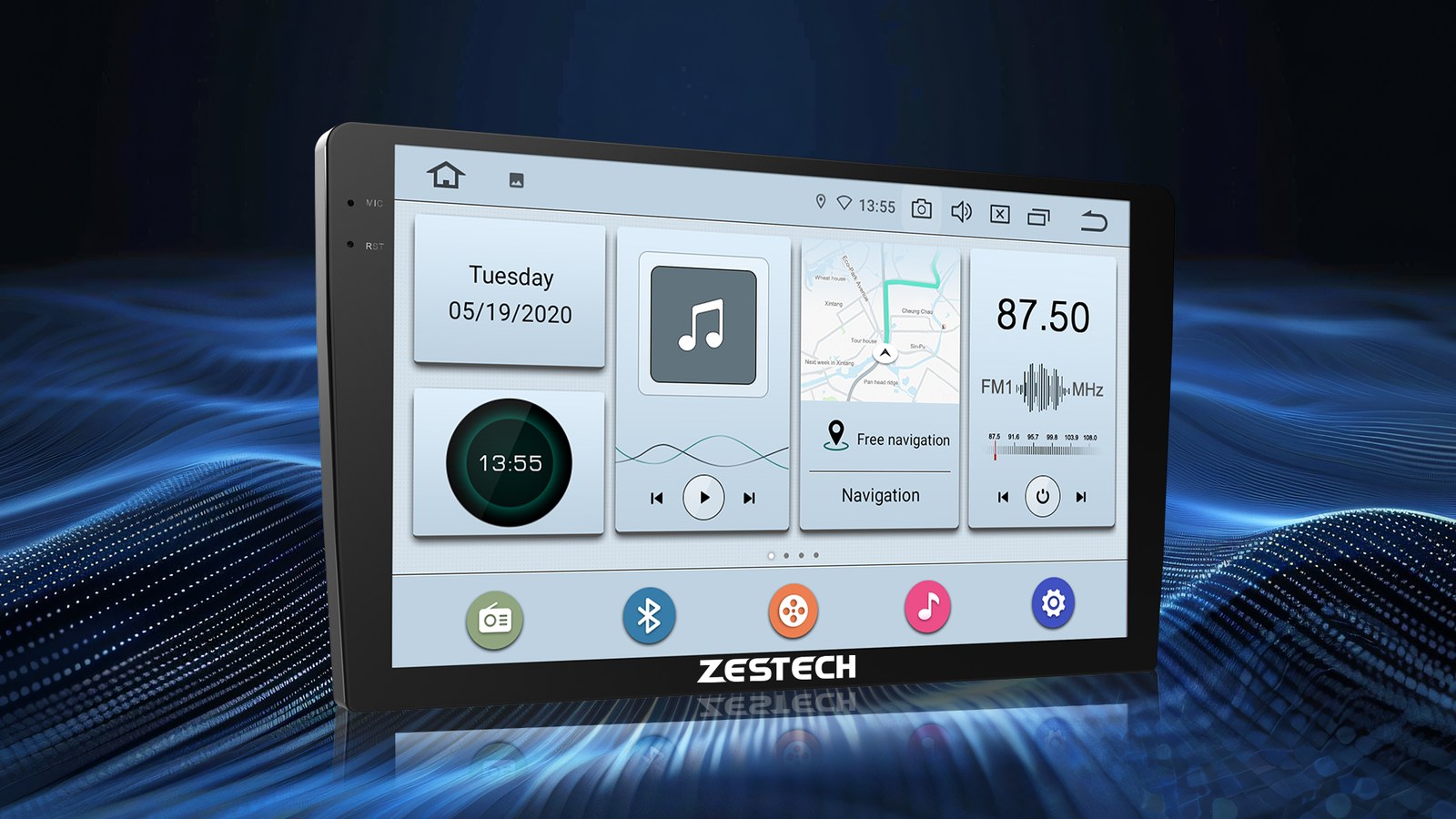

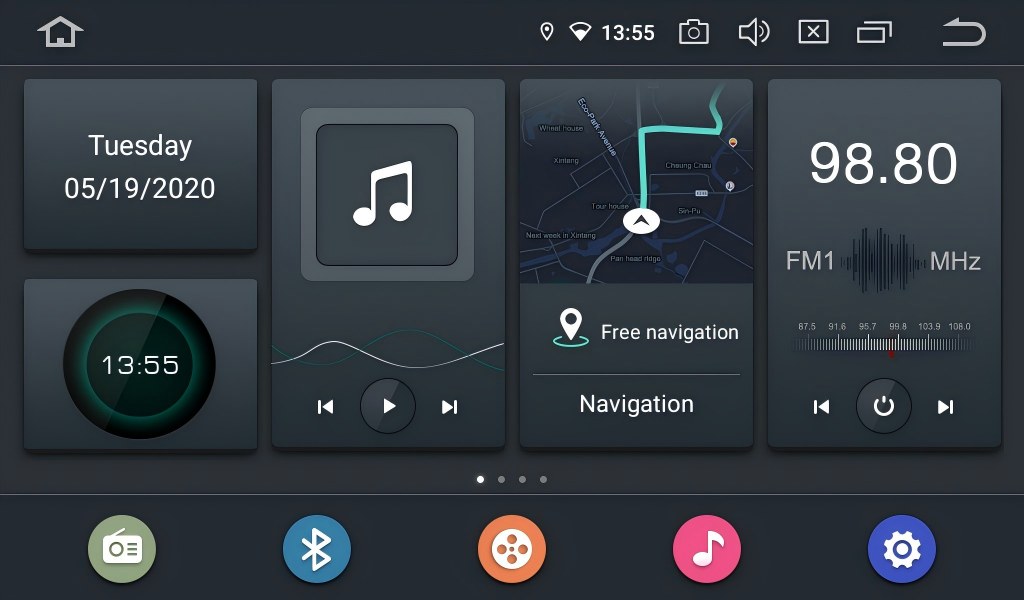

Android 11 launcher — weather, music, navigation and split widgets on the home screen.

Android 11 brings current app compatibility, predictable permission handling and a launcher that can be themed for your brand. Media playback covers MPEG, OGG, FLAC, AAC, AMR, MIDI and APE audio, MPEG-1/2/4, AVI and RMVB video and every common still format, so USB sticks from any region play without conversion.

Technical Specifications

Who Buys It, and Why

OEM / ODM: Build It As Your Own

ZESTECH runs the whole chain in-house — tooling, plastic injection, metal stamping, 8 assembly lines and dedicated SMT capacity, backed by an engineering team of 30+ and IATF 16949 / ISO 9001 quality systems. The ZT-A88 ships as your brand, not ours:

Let’s Talk About Your Market

Tell us which vehicle platforms you cover and your target price point. We will send the ZT-A88 full specification pack, current lead time, MOQ and private-label options — normally within one working day.

Shenzhen Zest Technology Co., Ltd. — a national high-tech enterprise founded in 2010, integrating independent R&D, mould development, manufacturing and worldwide after-sales for intelligent mobility and automotive electronics.
