Why the Platform Matters More Than the Screen

Buyers compare head units by screen size and price. Installers and distributors know the real question is different: how long will this hardware still run current apps? That answer comes from the chipset, the operating system and the thermal design — and it is exactly where the ZT-A91 was built to compete.

ZT-A91 — MTK-8781 high-performance vehicle navigation platform running Android 14.0.

The MTK8781 Core Platform

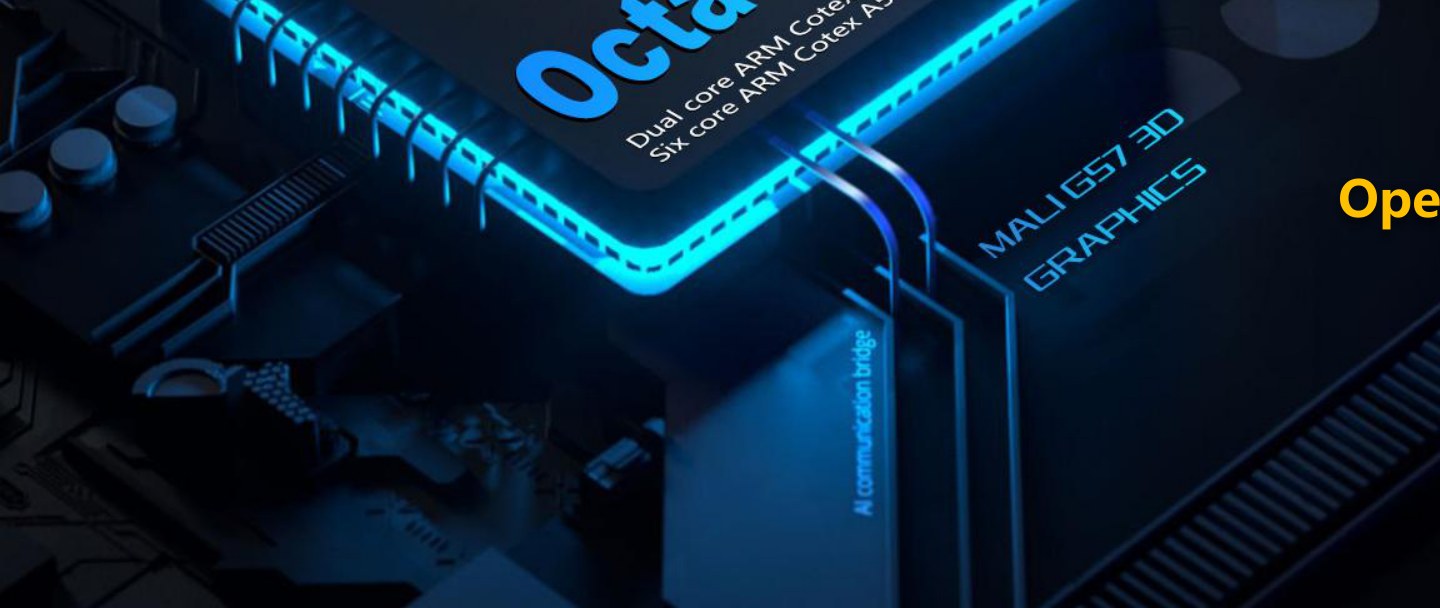

At the centre sits the MediaTek MTK8781, a 6nm octa-core chip configured as 2 × A76 at 2.2GHz plus 6 × A55 at 2.0GHz with Mali-G57 class graphics. The big-core arrangement matters: navigation routing, voice assistants and split-screen use stay responsive because the heavy threads land on A76 cores instead of queuing behind efficiency cores.

MTK8781 — 2×A76 2.2GHz + 6×A55 2.0GHz on a 6nm process, running Android 14.0.

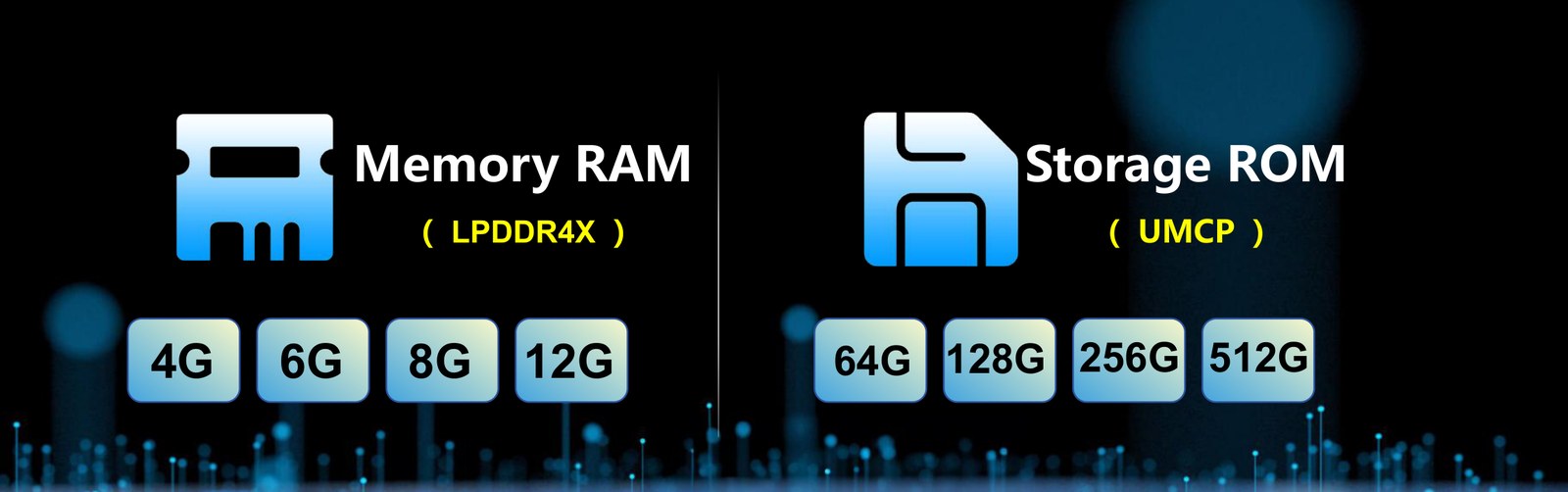

Memory and storage are configured to order. RAM runs LPDDR4X in 4G, 6G, 8G or 12G capacities; storage uses UMCP in 64G, 128G, 256G or 512G. That ladder lets one platform cover everything from a value taxi build to a flagship retail unit without a second board design.

LPDDR4X RAM from 4G to 12G; UMCP storage from 64G to 512G — one board, four product tiers.

2K Display at 120Hz

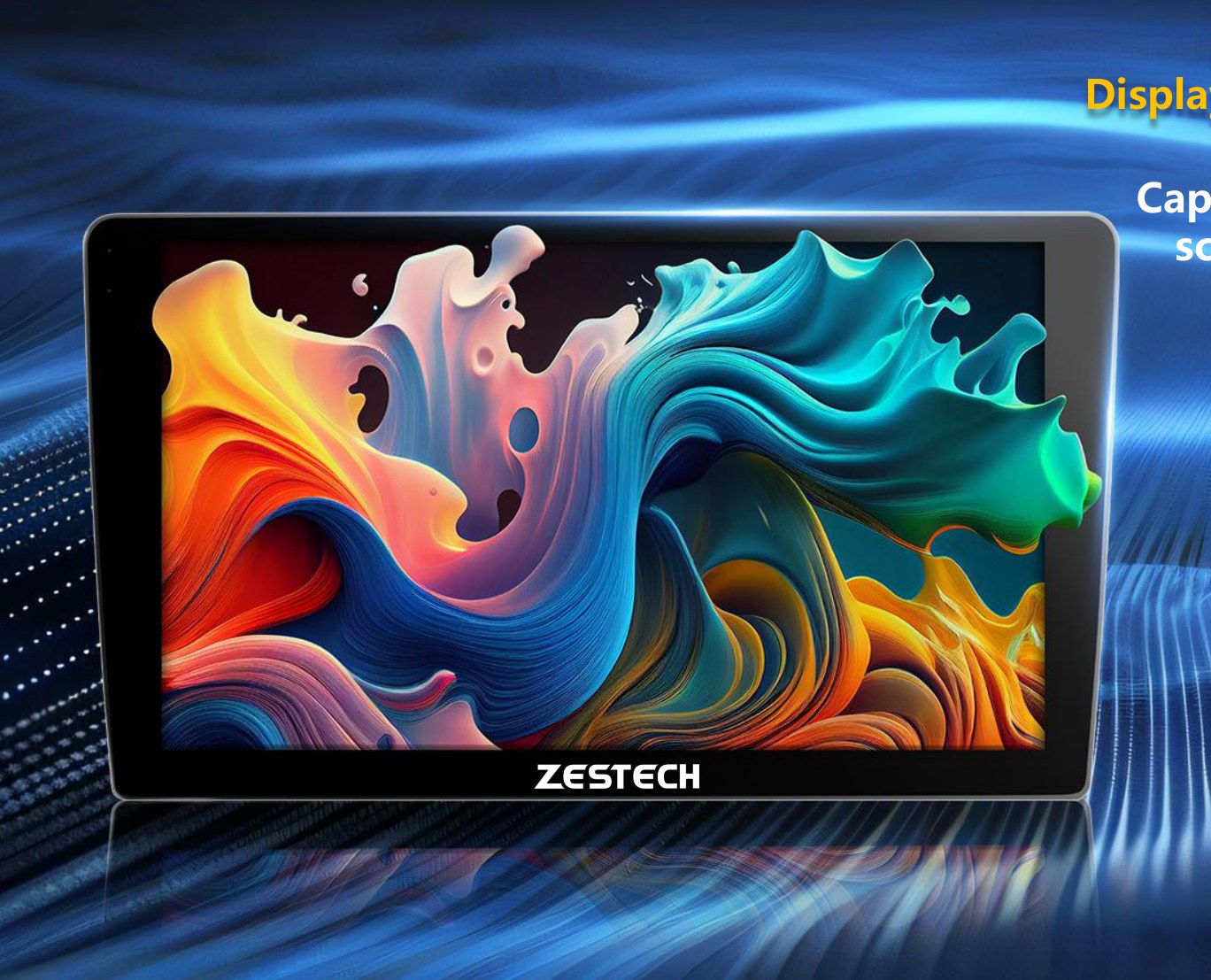

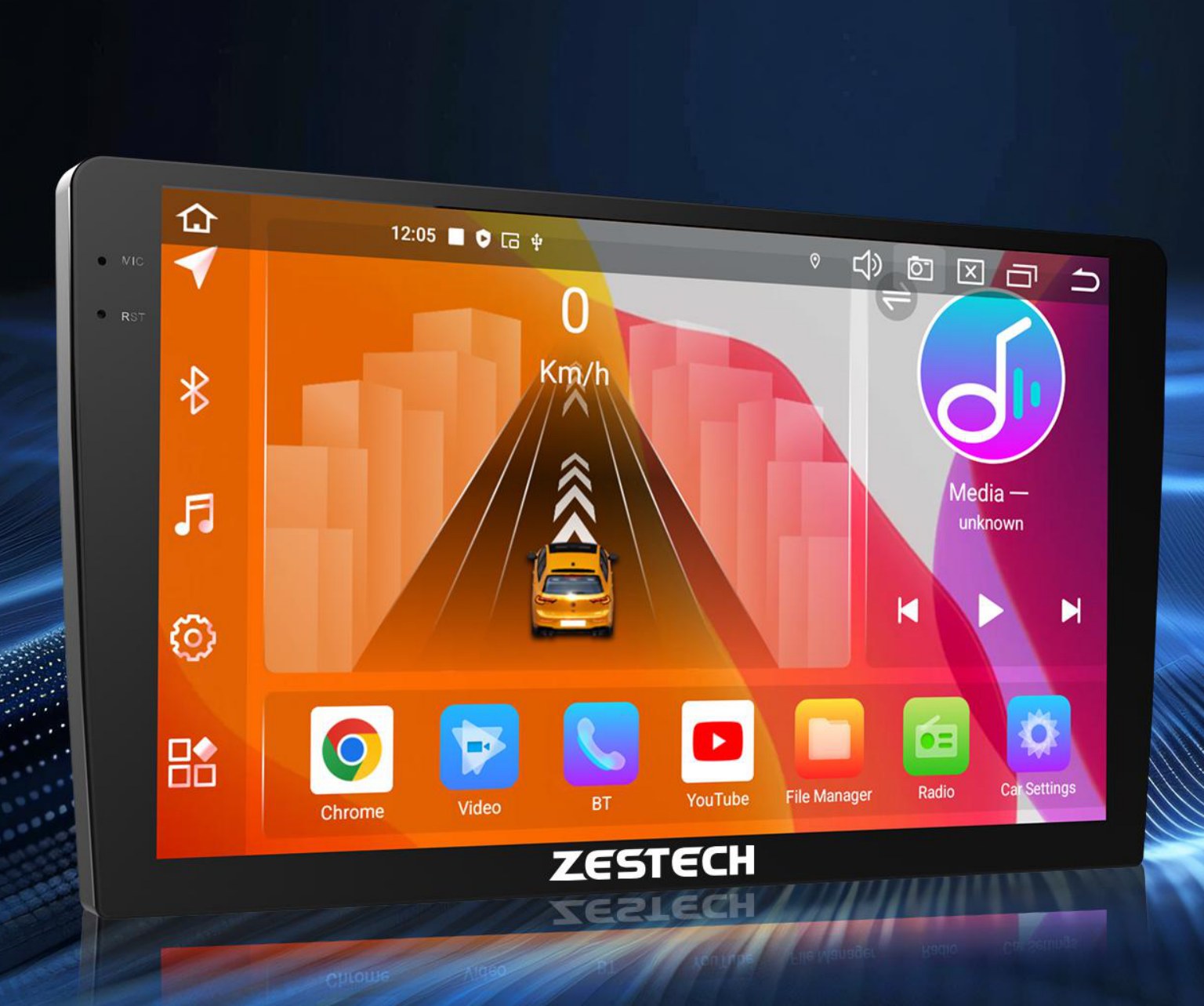

The display path is built for both quality and speed. A capacitive touch screen drives through a MIPI interface at up to 2K resolution with a 120Hz refresh rate — double the 60Hz of the previous generation. On a head unit that means smoother map panning, tear-free camera switching and noticeably better touch response.

2K resolution, 120Hz refresh, MIPI interface — capacitive touch across the full display area.

Audio Architecture: Real Amp, Real DSP

Audio is where most Android head units compromise, so it is worth being specific. The ZT-A91 routes output through a TDA7851 / 7850 / 7738 power amplifier in a 4.1 channel configuration, with 2 AUX inputs (left and right) available for external sources.

TDA7851 / 7850 / 7738 power amplifier in 4.1 channel output — 2 AUX inputs, left and right.

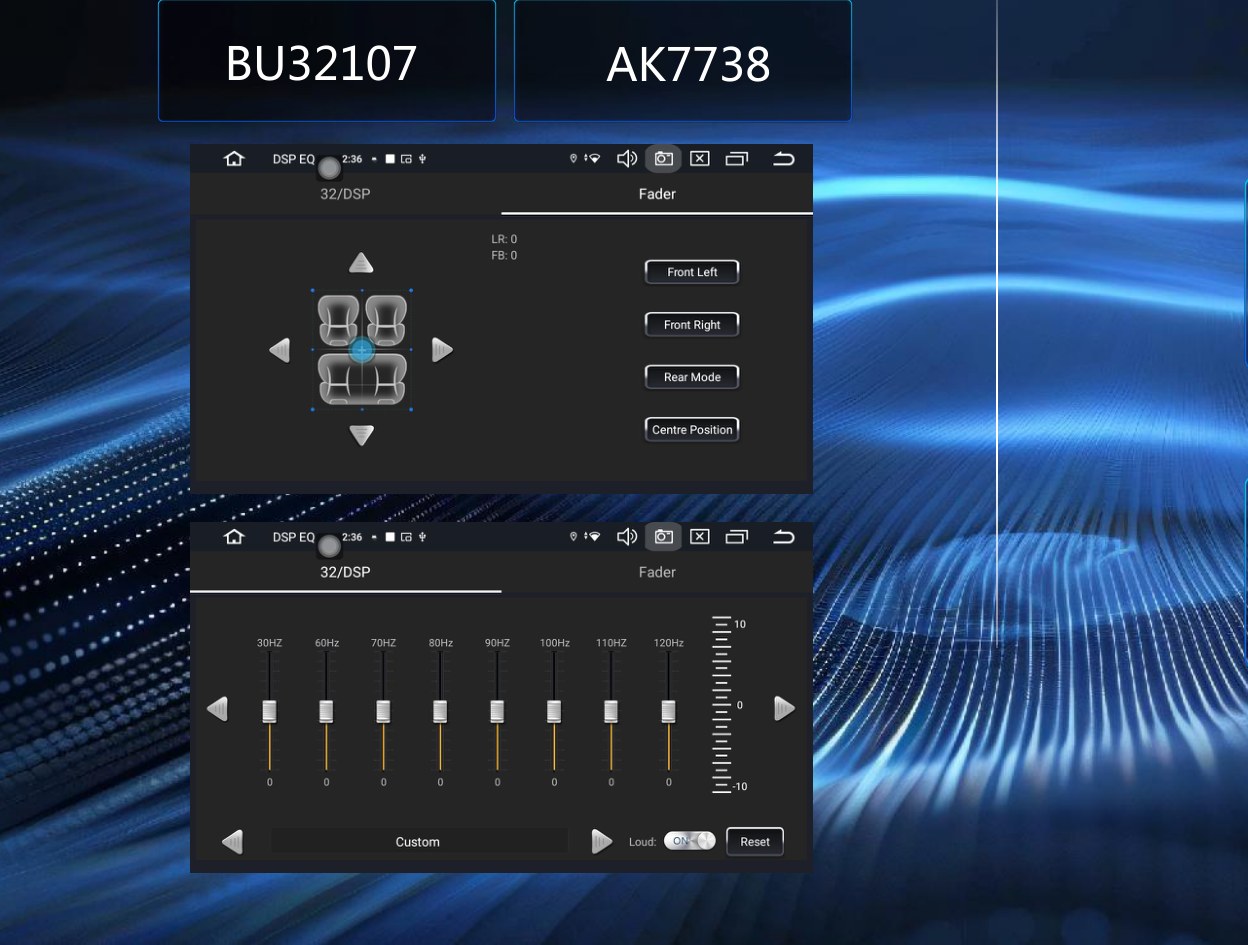

The DSP section is the differentiator. Two DSP platforms are offered — BU32107 and AK7738 — and they support a 32-band professional equalizer alongside 5.1 channel surround sound. A 32-band EQ is a tuning tool, not a gimmick: it lets an installer correct cabin resonance by frequency instead of reaching for a global bass knob.

32-band professional EQ and fader control — BU32107 or AK7738 DSP, plus 5.1 channel sound.

For purists there is also a true optical output — digital audio leaves the chassis without passing through the internal amplifier, ready for an outboard DSP or processor in a competition build.

Connectivity: 4G, Dual-Band WiFi, Bluetooth 5.2

Three radios cover the ways modern vehicles stay online.

4G cellular

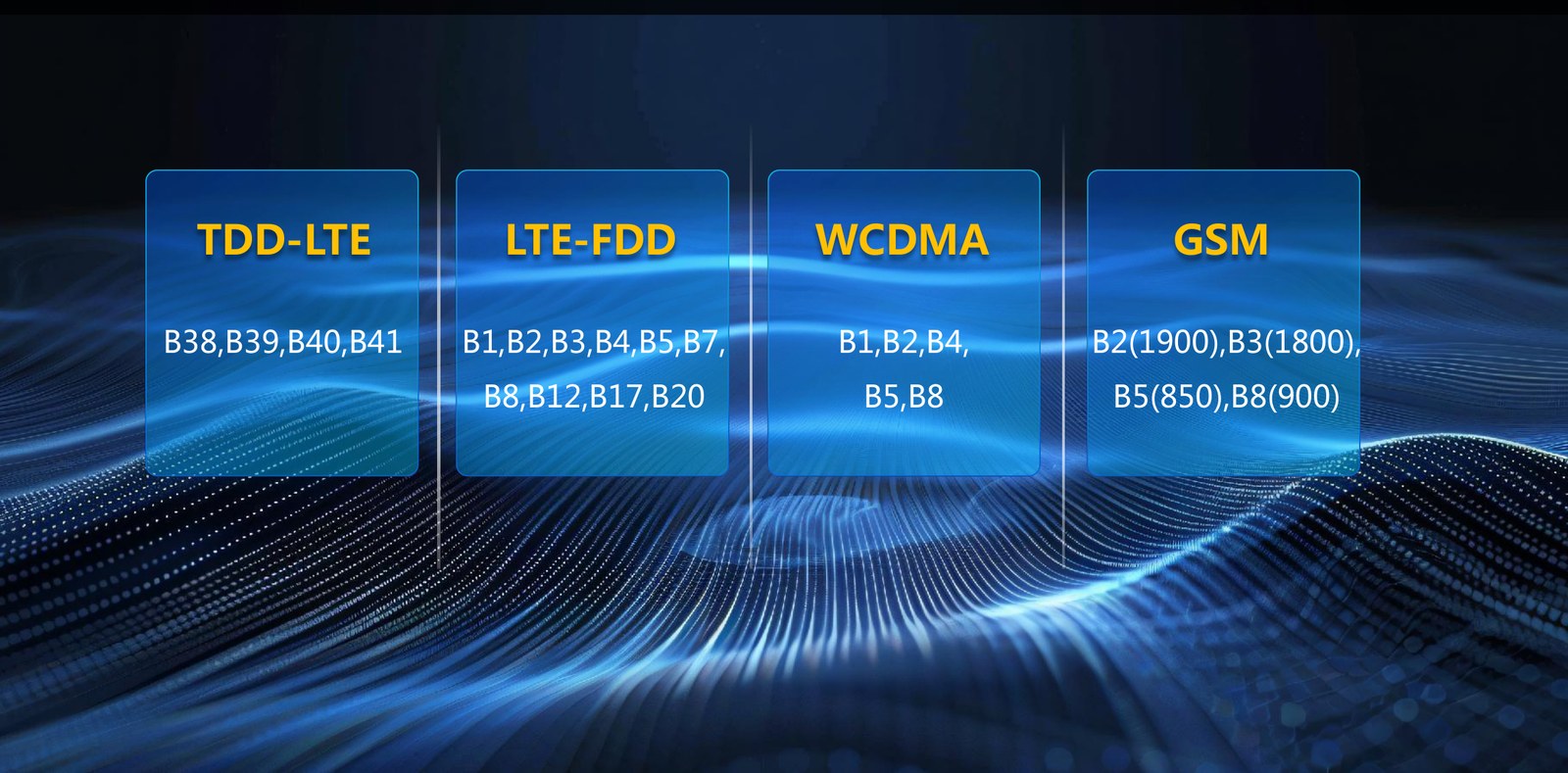

Full multi-band support across LTE and legacy networks: TDD-LTE B38, B39, B40, B41; LTE-FDD B1, B2, B3, B4, B5, B7, B8, B12, B17, B20; WCDMA B1, B2, B4, B5, B8; and GSM 850 / 900 / 1800 / 1900. That band list is broad enough for Europe, the Middle East, Africa, South America and most of Asia from a single hardware variant.

Multi-band 4G LTE plus WCDMA and GSM fallback — one variant covers most export markets.

Dual-band WiFi

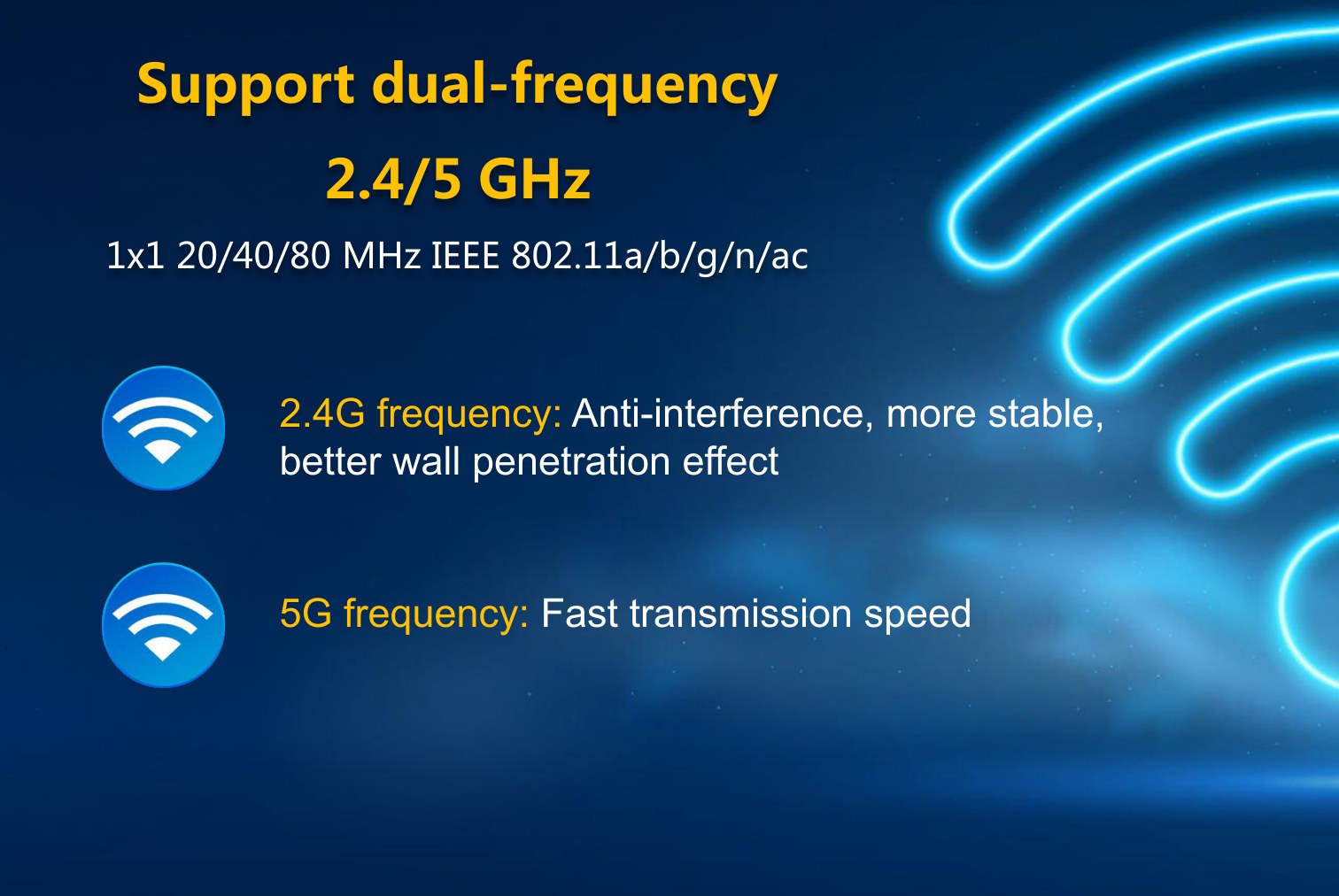

WiFi runs 2.4GHz and 5GHz on 1 × 1 20/40/80MHz, IEEE 802.11a/b/g/n/ac. The 2.4GHz band handles interference and wall penetration better; 5GHz moves data faster. Automatic band selection means the unit uses the right one without user intervention.

Dual-frequency 2.4/5GHz WiFi — 1×1 20/40/80MHz, IEEE 802.11a/b/g/n/ac.

Bluetooth 5.2

Bluetooth 5.2 brings lower power consumption and more efficient connection management, with LE synchronous channels that carry multi-device audio and LE power control that adapts transmitter output. The practical result is smoother coexistence with other 2.4GHz devices in a busy cabin.

Bluetooth 5.2 — LE synchronous audio channels and adaptive transmitter power for 2.4GHz coexistence.

Radio, Video and I/O

Video input accepts up to two AUX or camera sources, with HD 1920 × 1080 codec handling; video output supports the same HD resolution for driving rear screens or passenger displays.

Video input and output at HD 1920×1080 — AUX/CAM input expandable through an external box.

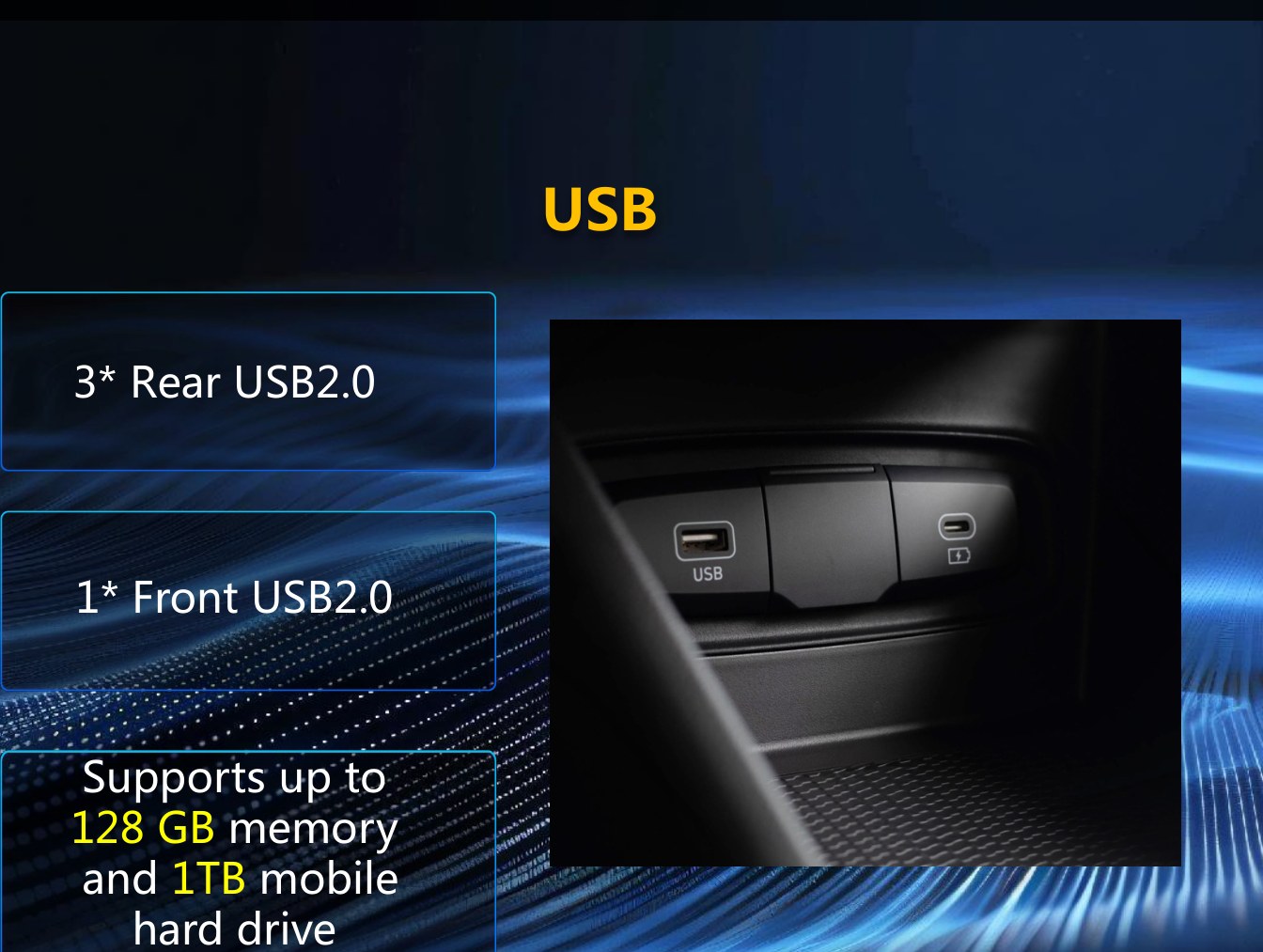

USB provision is generous: three rear USB 2.0 ports plus one front USB 2.0 port. Storage is certified to 128GB of memory and 1TB mobile hard drives — enough for offline maps, a media library and dash-camera archiving on the same unit.

Three rear + one front USB 2.0 — supports up to 128GB memory and 1TB mobile hard drives.

Camera Support and 360 Panoramic Option

The rear-view camera path handles CVBS, AHD 720P and AHD 1080P at 25 or 30 frames per second, plus TVI 720 at 30 frames. That covers the analogue, AHD and TVI cameras installers actually stock, rather than locking a build to one camera standard.

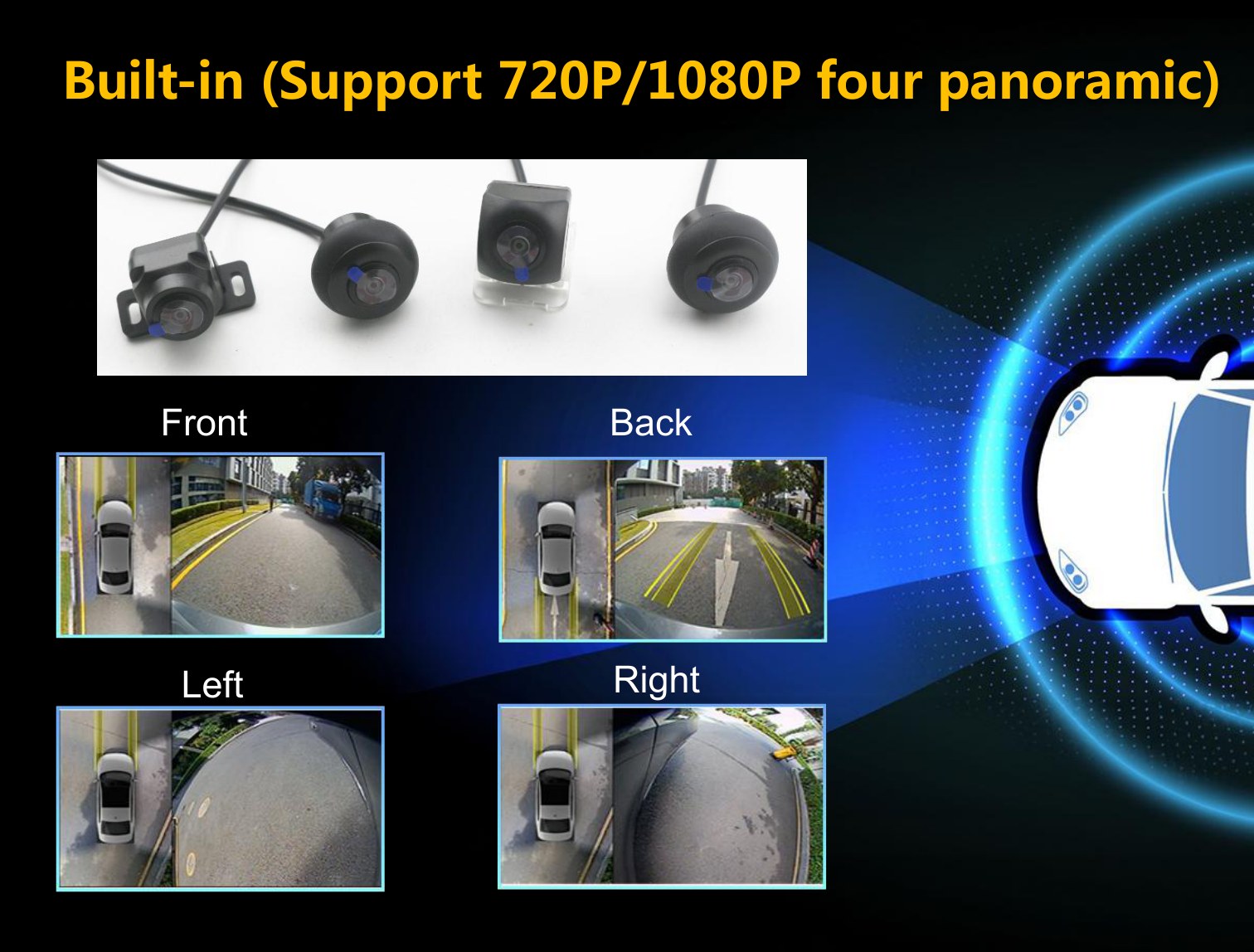

For higher-end vehicles the platform offers a built-in 360 panoramic system as an option, supporting 720P or 1080P four-camera surround view with front, rear, left and right channels stitched on the head unit itself — no separate panoramic control box.

Optional built-in 360 panoramic system — 720P/1080P four-camera surround view, no external control box required.

ZT-A91 vs a Previous-Generation Platform

Where it matters commercially: a 6nm MTK8781 with Android 14 keeps the platform inside the app-support window for years, and the integrated 360 panoramic option removes a separate control box from the bill of materials.

Technical Specifications

Who the ZT-A91 Suits

OEM / ODM: Build It As Your Own

ZESTECH runs R&D, mould development, manufacturing and after-sales in-house, with 15+ years in automotive electronics, distribution in 50+ global markets and partnerships with 100+ OEM brands. For the ZT-A91 that means:

Let’s Talk About Your Market

Tell us your market, target configuration and retail price point. We will send the ZT-A91 full specification pack, sample availability, MOQ and private-label options — normally within one working day.

Shenzhen Zest Technology Co., Ltd. — a national high-tech enterprise founded in 2010, integrating independent R&D, mould development, manufacturing and worldwide after-sales for intelligent mobility and automotive electronics.
