Why a One-DIN Platform Still Wins in 2026

Flagship screens get the headlines, but volume lives in the middle of the market. Fleets, aftermarket chains and regional distributors keep asking for the same thing: a head unit that drops into the existing one-DIN opening, runs current Android for years, and does not force a custom fascia for every dashboard. The ZT-A31 answers all three with an octa-core MTK8786, Android 14.0 and a hardware list that reads like last year’ flagship.

Octa-Core MTK8786 on a 12nm Process

MediaTek’ MTK8786 pairs two Cortex-A75 performance cores at 2.2GHz with six A55 efficiency cores at 1.8GHz on a 12nm die, with a Mali-G57 3D GPU handling the 2K interface. The architecture is the reason the ZT-A31 boots fast, switches apps without stutter and keeps its temperature predictable behind a hot windshield.

Octa-core 12nm platform with Android 14.0 out of the box.

For distributors the takeaway is simple: a 12nm octa-core running Android 14 clears the app compatibility bar that buyers actually test — latest YouTube, Waze and streaming builds — and it does so in the price band where volume happens.

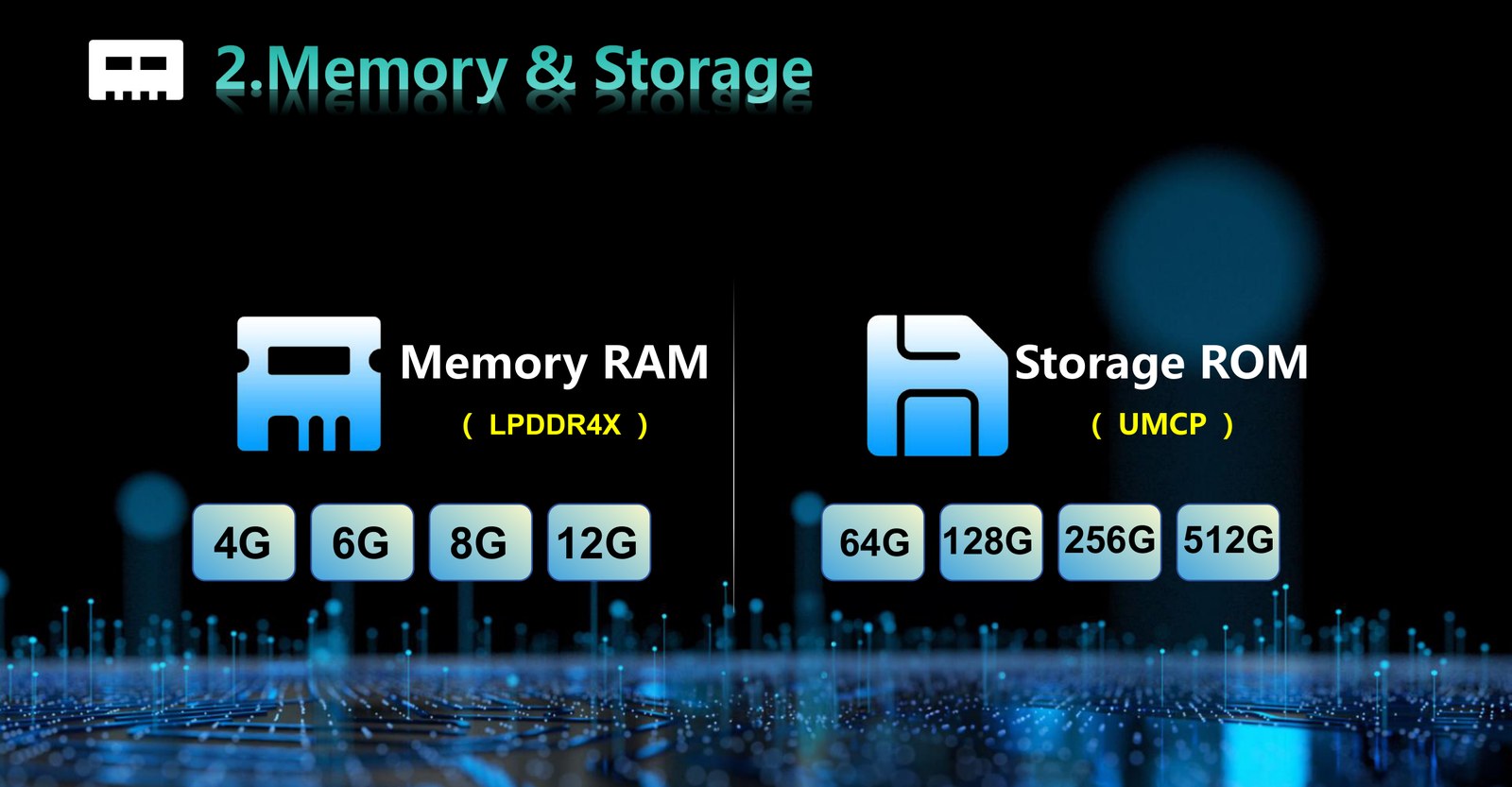

Memory and Storage: One Chassis, Four Price Tiers

The ZT-A31 is quoted with 4G, 6G, 8G or 12G of LPDDR4X RAM and 64G to 512G of UMCP storage. That range lets one hardware platform serve a value-market SKU and a near-flagship SKU from the same mould, the same wiring loom and the same installation manual.

LPDDR4X RAM up to 12G, UMCP storage up to 512G.

2K Resolution on a 120Hz MIPI Display

The capacitive display connects over MIPI and refreshes at 120Hz — twice the rate of the 60Hz panels still common in this class. Scrolling feels immediate, reversing cameras render without smearing, and the 2K resolution keeps small map text readable in daylight.

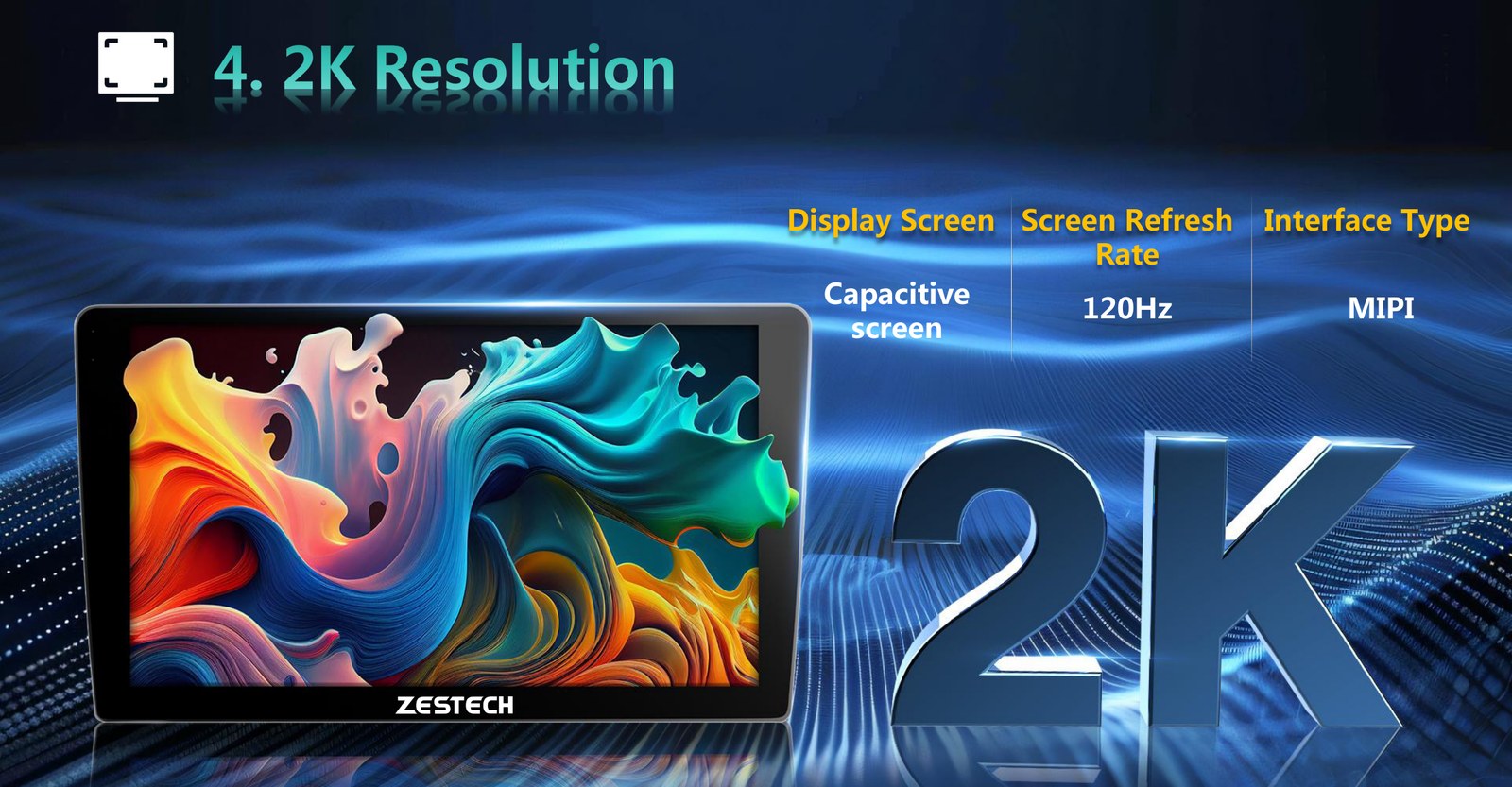

2K resolution, 120Hz refresh, MIPI interface.

Four Satellite Systems, One Antenna

GPS, GLONASS, Galileo and Beidou are all supported. For fleets crossing regions, four-constellation reception holds a fix in urban canyons and mountain roads where single-GPS units drift — and it works with offline map packages as well as Google Maps.

All four positioning systems supported.

Connected: 4G Full-Network and a Real Radio Chip

A full-network 4G modem covers TDD-LTE, LTE-FDD, WCDMA and GSM bands — the unit stays online for streaming, traffic and remote diagnostics in most markets on one SKU. Radio duties go to a TEF6686 tuner with RDS, covering 65MHz~108MHz — the same silicon European and Asian radio specifications expect.

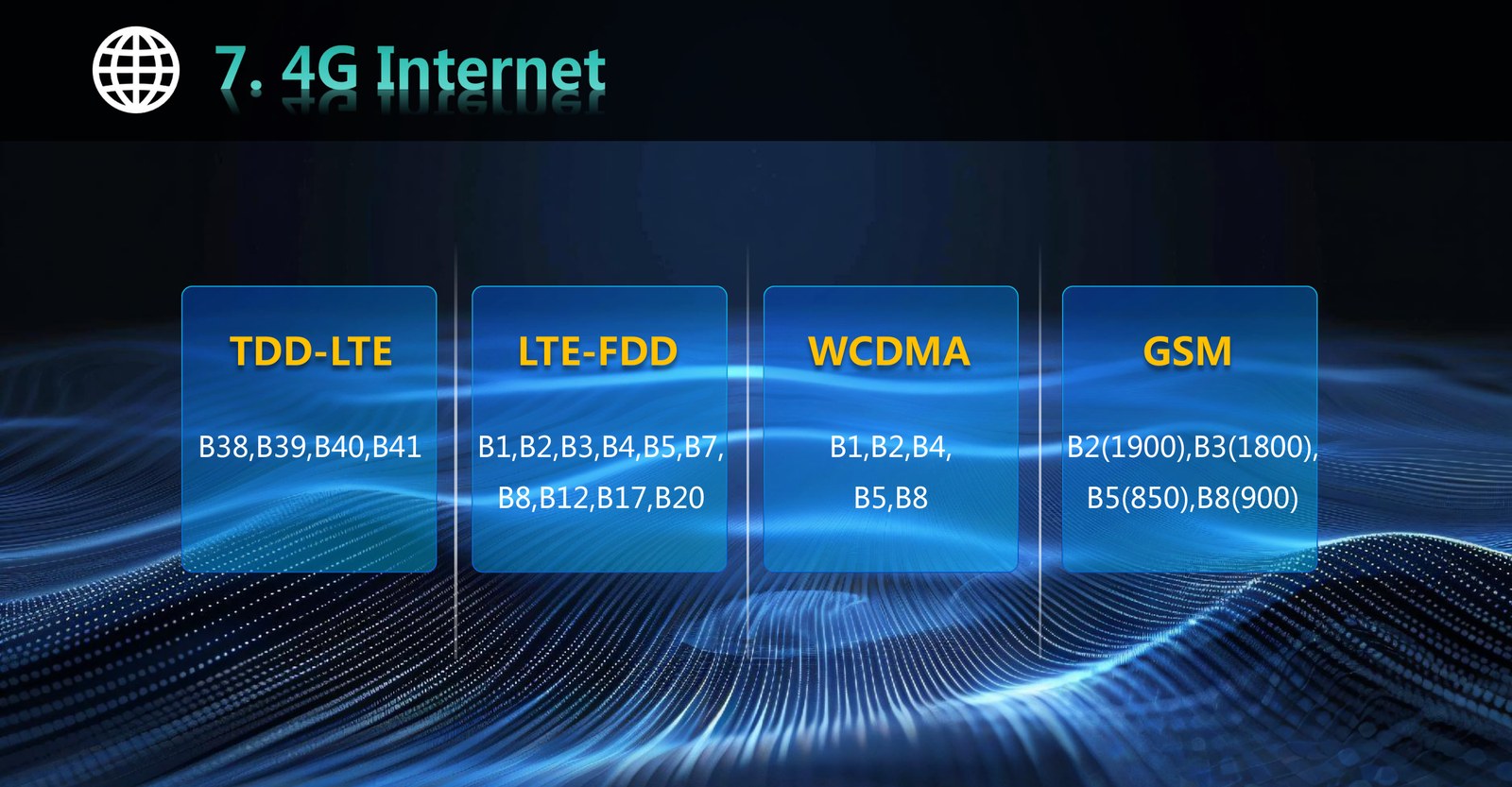

TDD-LTE, LTE-FDD, WCDMA and GSM on one unit.

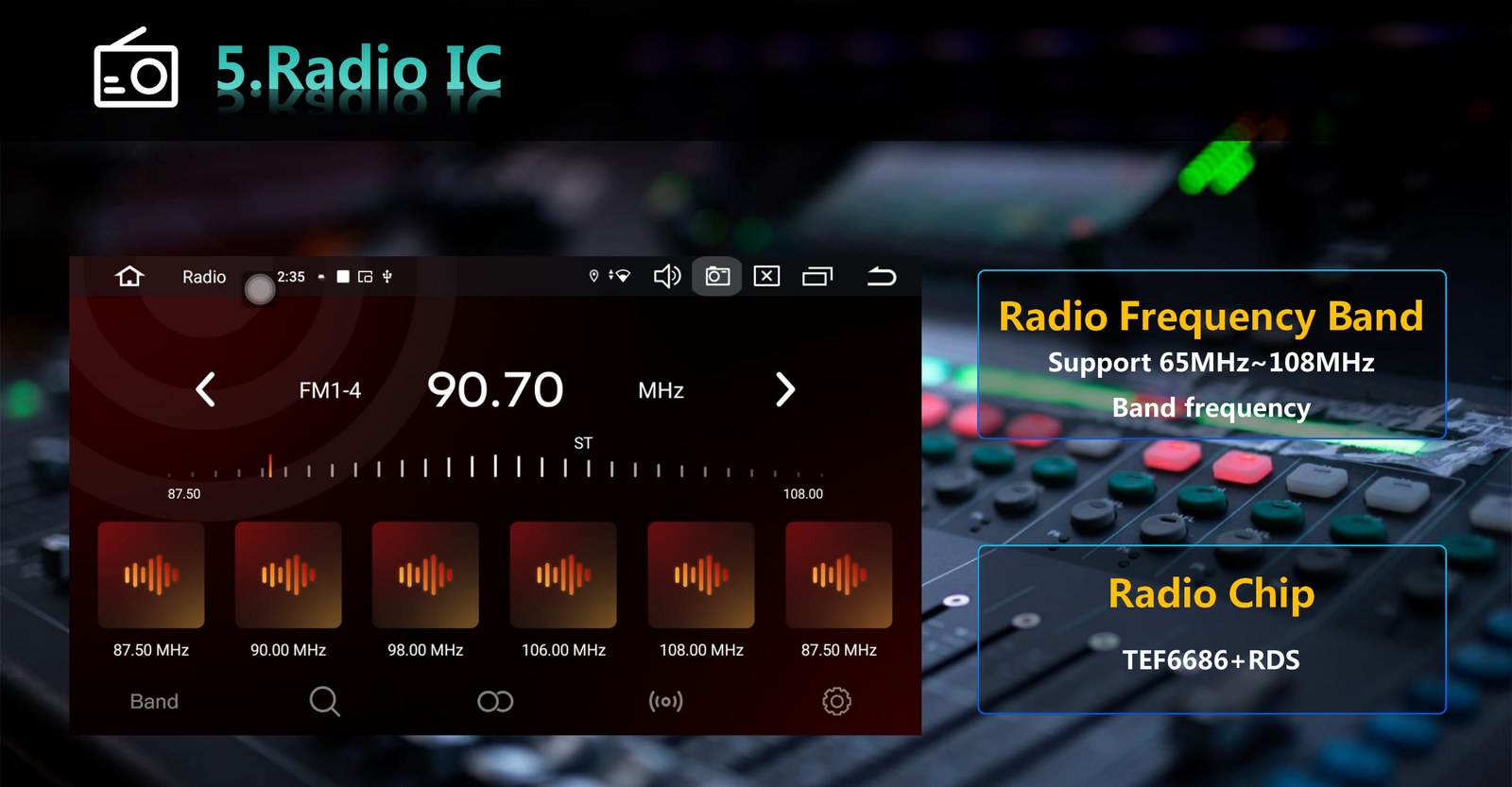

TEF6686 + RDS across 65MHz~108MHz.

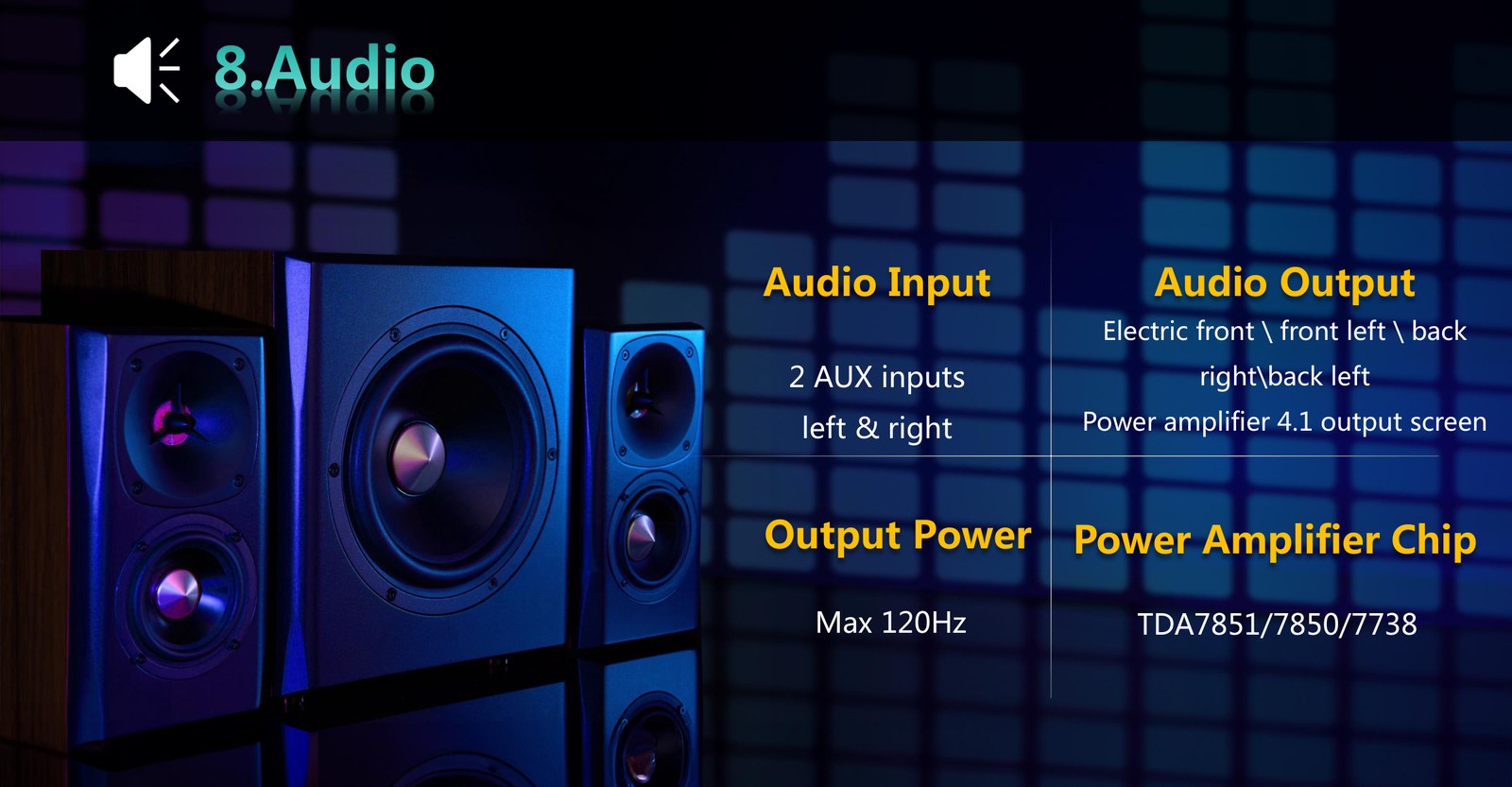

Audio, Video and Wireless

Audio output runs through a TDA7851-class power amplifier chip (7851/7850/7738 options) with 4.1-channel output and two AUX inputs. Video input accepts two AUX/CAM sources at HD 1920×1080, and Bluetooth 5.2 with low-energy synchronous channels keeps calls stable alongside other 2.4GHz traffic. Dual-band 2.4G/5G Wi-Fi (802.11a/b/g/n/ac) handles hotspots: 2.4G for wall penetration, 5G for speed.

TDA7851/7850/7738 amplifier options, 4.1-channel output.

Bluetooth 5.2 with LE synchronous channels.

Dual-band 2.4G/5G WiFi, IEEE 802.11a/b/g/n/ac.

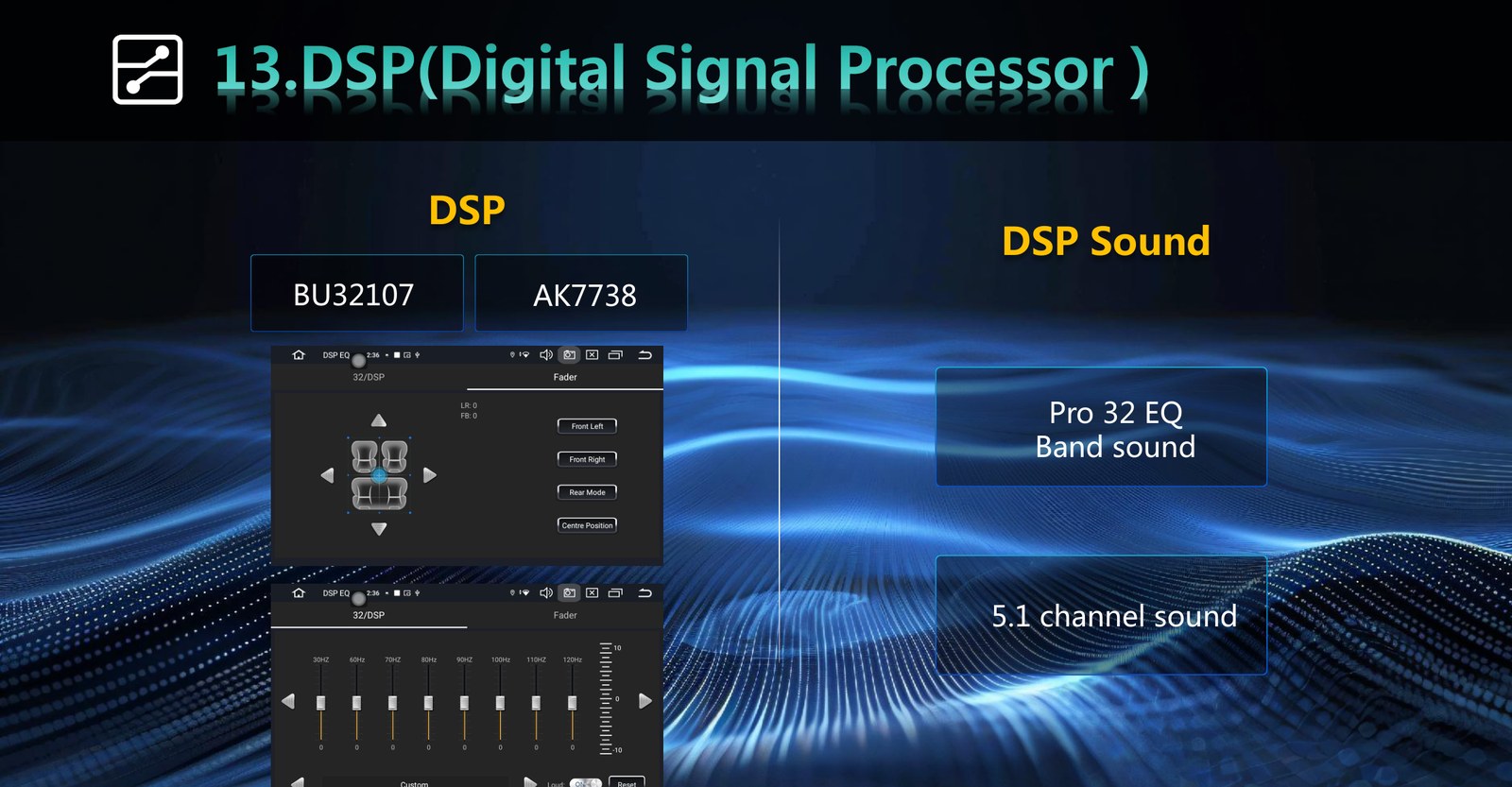

Built-In DSP with 32-Band EQ

A BU32107 or AK7738 digital signal processor is fitted on board — the same DSP family used in the standalone BOX03 amplifier. The UI exposes a 32-band equalizer with per-channel delay, front/rear/center routing and a 5.1-channel mode. For buyers comparing head units, tuning depth is now a purchase criterion: “32-band EQ included” moves the ZT-A31 above units that only offer bass and treble sliders.

BU32107 / AK7738 DSP with 32-band EQ and 5.1-channel sound.

Installation: Documented Wiring, Power Harness Included

Every ZT-A31 ships with the full A/B/C connector chart — pin-by-pin, from SWC-B and CAN-RX to the reversing lamp trigger. Installers report the printed chart is what keeps a one-DIN swap inside a one-hour bay slot: power, speakers, camera and steering-wheel control all land on documented pins rather than guesswork.

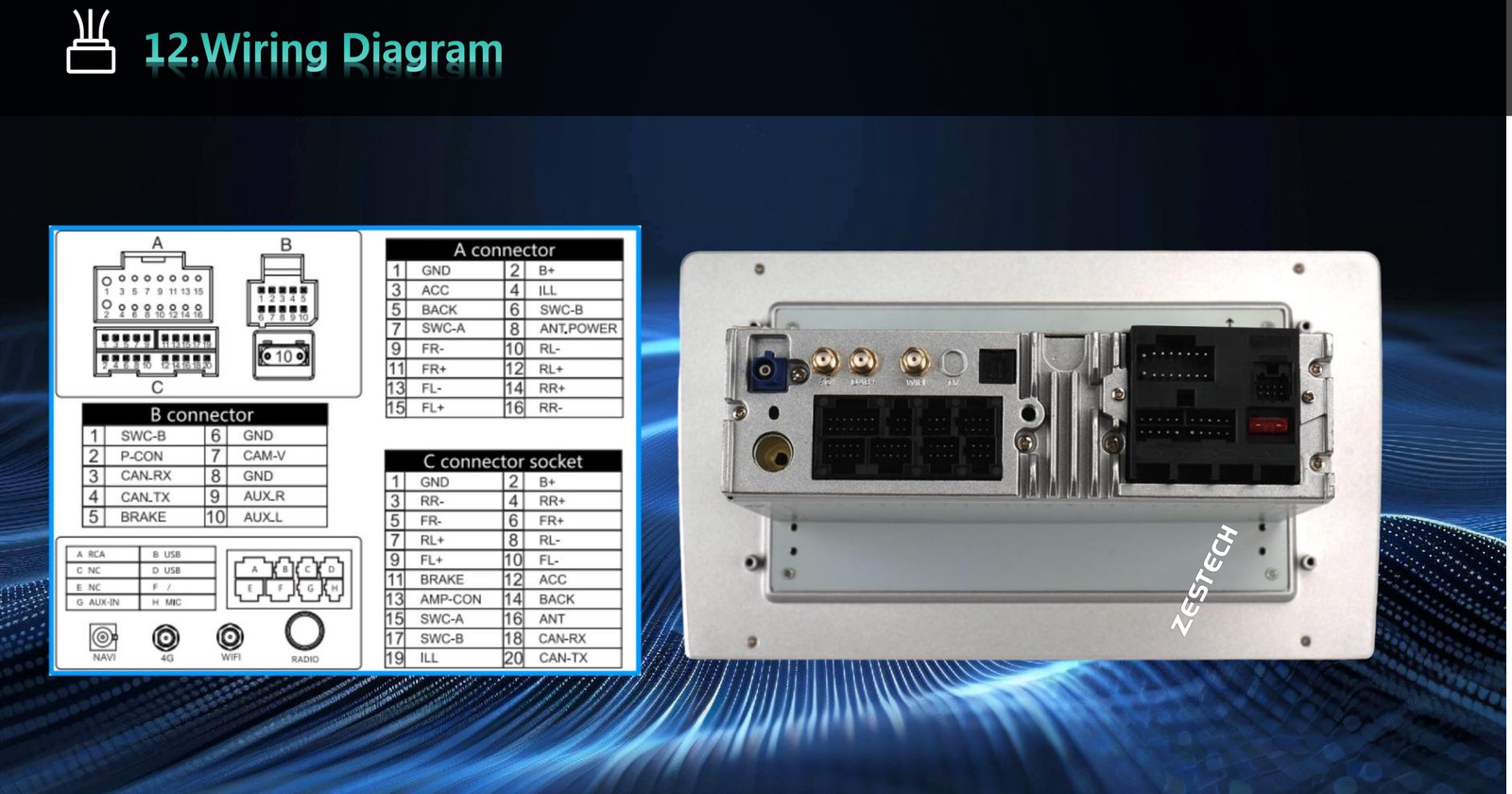

A/B/C connector chart ships with every unit.

Optional Layers: CarPlay, 360° Panorama and More

Where the market demands it, the ZT-A31 adds wireless or wired CarPlay and Android Auto, and a built-in 360 panoramic system supporting 720P/1080P four-camera stitching — the same panorama pipeline used in the ZT-A91 platform. Both options are firmware-level, so one stock unit can be enabled before dispatch instead of reworked in the field.

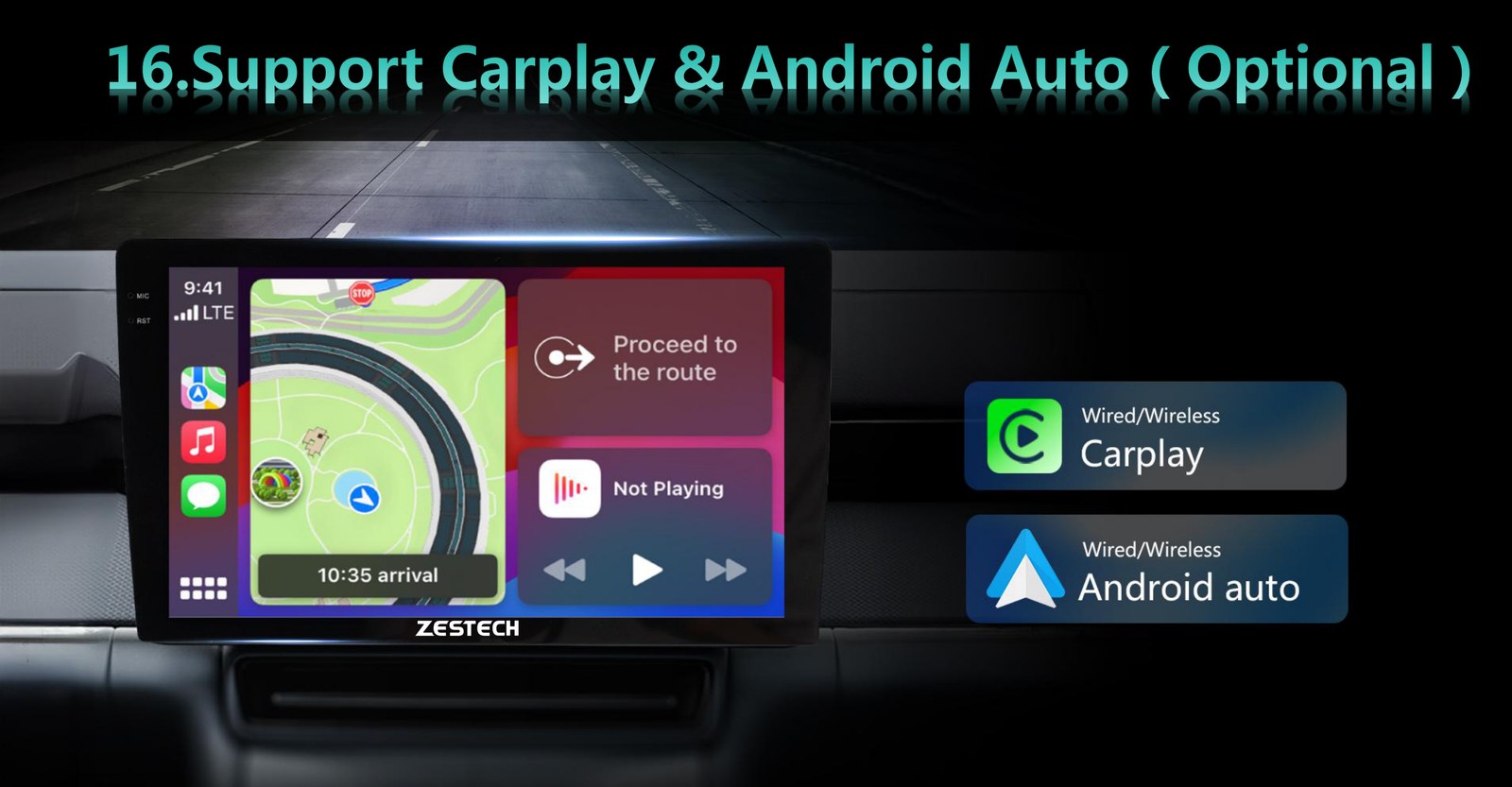

Wired or wireless CarPlay and Android Auto (optional).

Built-in 360 panoramic, 720P/1080P four-camera stitching (optional).

USB and Rear-Camera Flexibility

Three rear USB 2.0 ports and one front port handle dash-cam storage, media sticks and modem dongles — up to 128GB flash or a 1TB mobile drive. The camera input accepts CVBS, AHD 720P/1080P at 25/30 frames and TVI 720/30, so existing fleet cameras keep working without replacement.

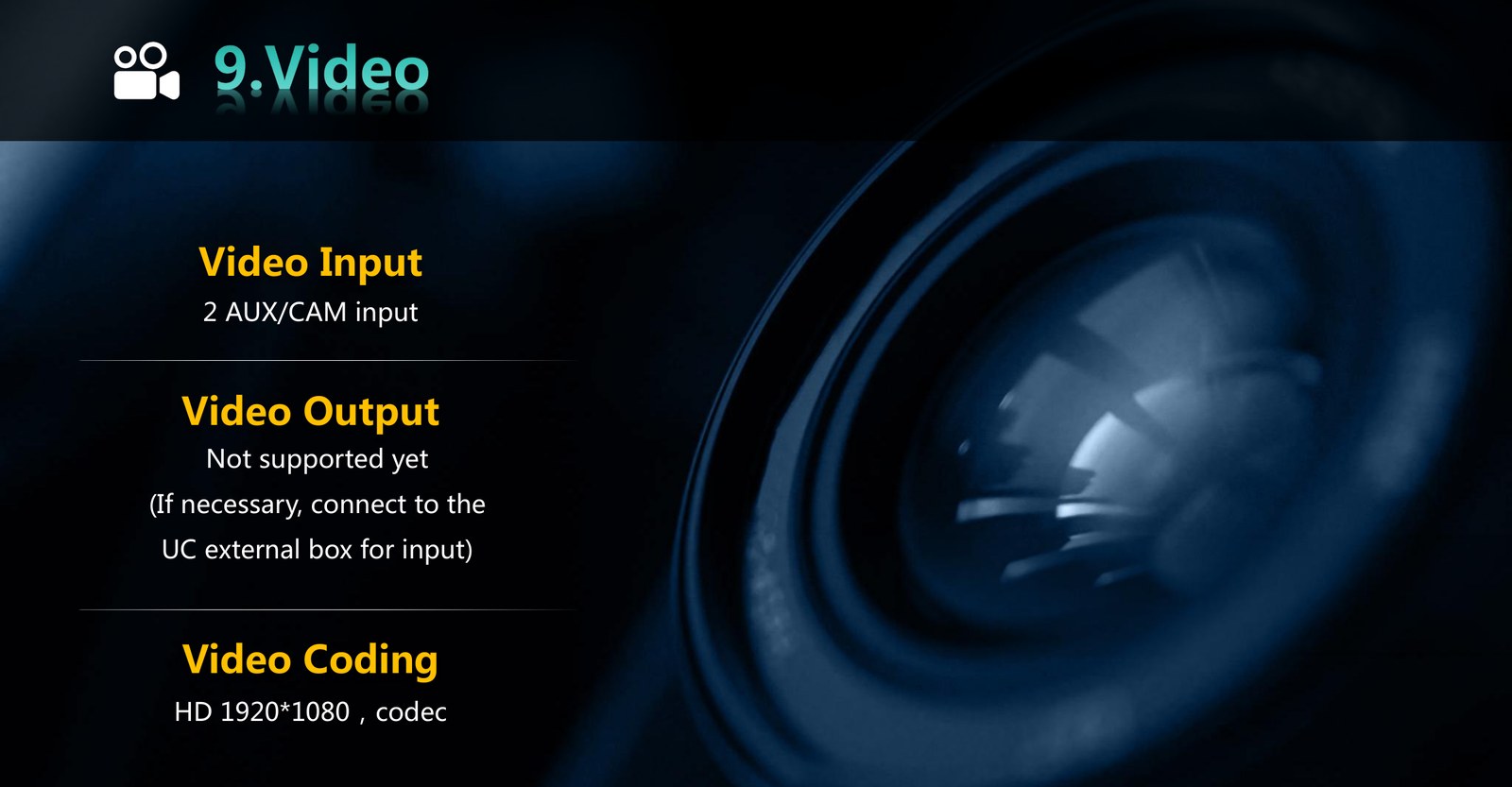

Two AUX/CAM inputs, HD 1920×1080 codec.

Voice control, DAB+, Bluetooth OBD, dual HD shots, remote wake-up.

Full Parameter Table

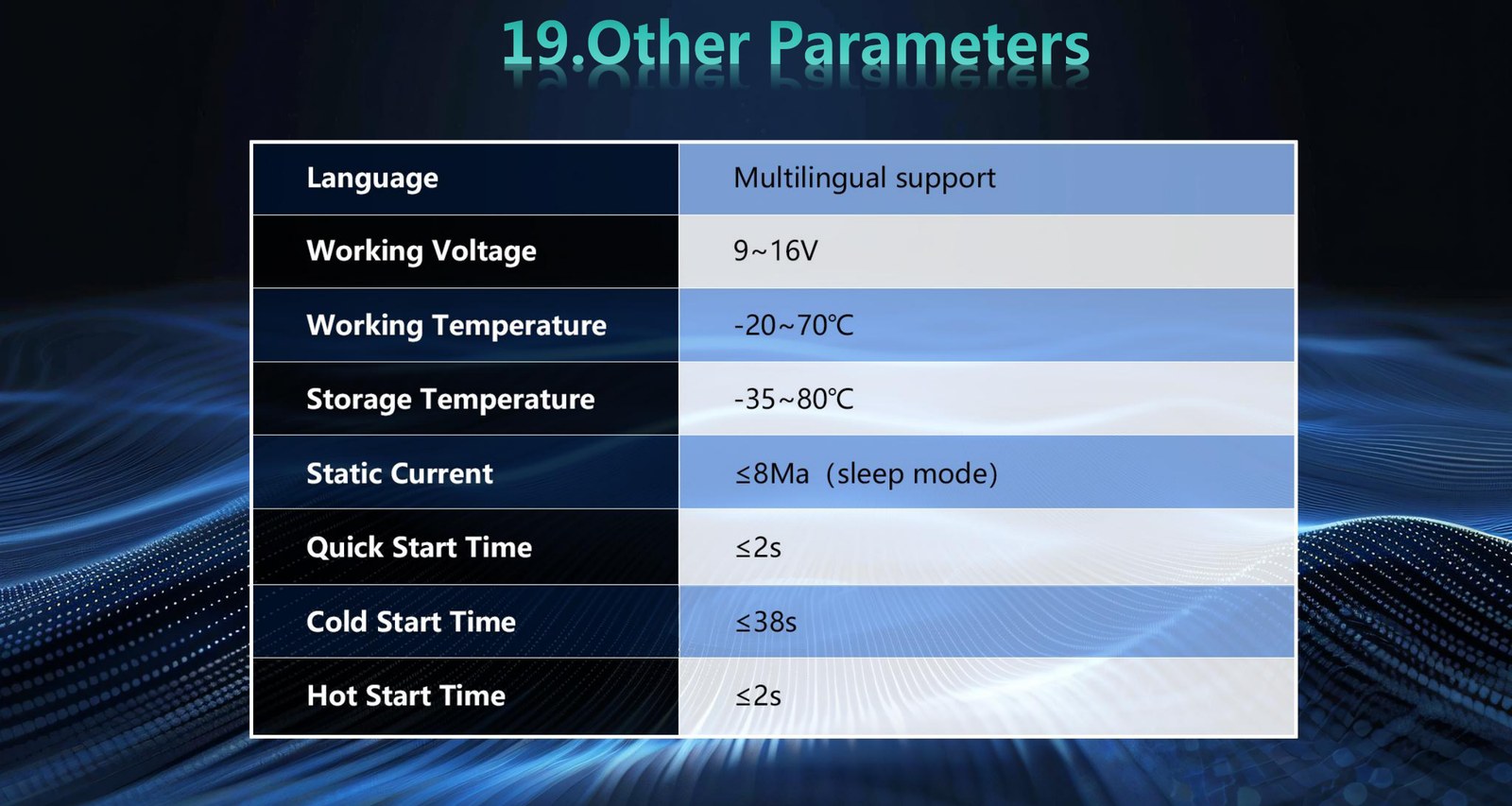

Working envelope and start-up performance.
