Fig. 1 — Our in-house 6115 Wireless CarPlay Compatibility Test Report covers 33 real head units from 16 brand families.

What Exactly Is a CarPlay AI Box?

A CarPlay AI box is a palm-sized module that plugs into the car’s USB or Type-C data port. It talks to the factory head unit using the original wired CarPlay or Android Auto protocol, then opens a full Android environment on the car screen. Drivers keep steering-wheel controls, touch input and factory microphones, while gaining access to streaming apps, navigation, video and wireless phone mirroring.

At ZESTECH the line-up ranges from the cost-effective ZT-S36 (Qualcomm QCM6115) to the flagship ZT-S48 (Qualcomm SM6350). Both share the same compatibility logic: they handshake with the car through the same channel the phone would use, then take over the display.

Fig. 2 — The ZESTECH ZT-S48 is built around the Qualcomm SM6350 platform and supports both wired and wireless CarPlay/Android Auto source cars.

The Two Things Your Car Must Have

The requirement list is simpler than most buyers expect. There are only two hard conditions:

• ✓Factory wired CarPlay or wired Android Auto — This is the data channel the box uses to enter the screen. Without it, the box has nothing to negotiate with.
• ✓A working USB/Type-C data port connected to the head unit — Some cars have USB ports that only supply power. The port must carry data to the infotainment system.

That is it. Year of manufacture, screen size or region do not block compatibility by themselves. What matters is whether the factory system already speaks the Apple or Google protocol over a cable.

Fig. 3 — Even a basic wired-to-wireless adapter needs the same prerequisite: a factory wired CarPlay or Android Auto system.

What Our Lab Test Says: 33 Cars, 16 Brands, One Rule

We ran a controlled compatibility test on 33 production head units covering 16 brand families. The goal was not marketing — it was to know exactly where the box pairs over Bluetooth and where it falls back to a wired USB connection.

The key takeaway: “Not Available” in the Bluetooth search column is not a failure. It simply means the box stays wired for the connection rather than cutting the cable. The function test still returns OK because the data path through USB is intact.

Fig. 4 — The ZESTECH CarPlay AI Box family is engineered for broad global brand coverage.

Which Cars Needed the Wired Fallback?

From the test batch, the 11 units that skipped Bluetooth pairing included BMW ID6, several Hyundai/Kia ADB and SELTOS systems, some Ford PU-1760 and SYNC variants, Jaguar Land Rover, Buick, and Volkswagen CNS3.0 MQB units. In every case the box still worked — it just kept the USB link active. For installers, this is important information to set customer expectations: wireless is the goal, but wired reliability is the safety net.

What About Cars Without CarPlay at All?

This is the only scenario where a standard CarPlay AI box is not the answer. If the factory head unit never had wired CarPlay or wired Android Auto, there is no protocol for the box to speak. Those vehicles need a replacement head unit or a full multimedia upgrade instead.

That is where ZESTECH’s Car Multimedia System line comes in. Models like the ZT-A86 (2K IPS, Android 13, UIS7870) and ZT-A91 (with optional 360° panoramic camera input) replace the factory screen entirely and bring CarPlay, Android Auto and a full Android OS to vehicles that were never equipped with them.

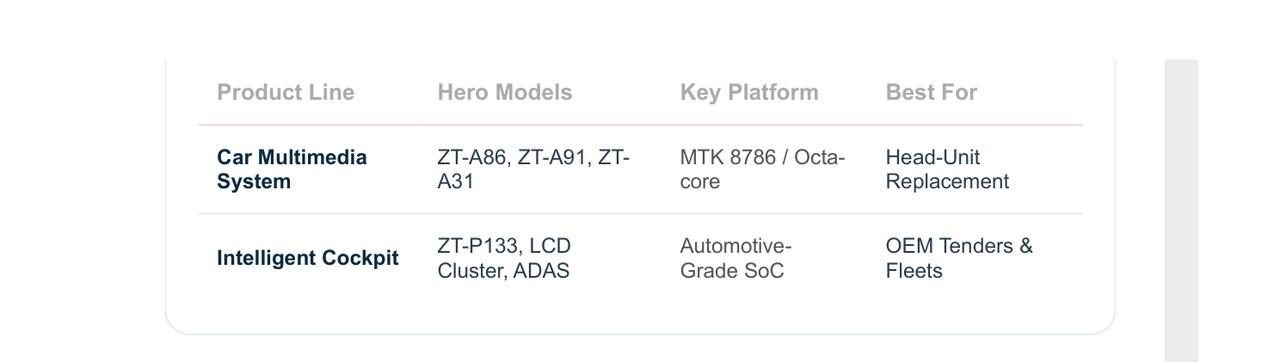

Fig. 5 — ZESTECH covers both retrofit CarPlay AI boxes and full replacement multimedia systems, so the right solution matches the car’s starting point.

Product Introduction: ZT-S48 SM6350 CarPlay AI Box

Why Choose ZESTECH for Your CarPlay AI Box Line-up

• ✓Verified compatibility data — We test real head units, publish the results and keep profiles updated as new car firmware ships.
• ✓Qualcomm-powered hardware — From the QCM6115 to the SM6350, our platforms use automotive-grade silicon with long-term Android support.
• ✓Real manufacturing depth — ZESTECH operates a 50,000 m² production base with 7 production lines and an annual capacity of 3 million units, backed by 50+ R&D engineers and 125 authorized patents.
• ✓Quality systems you can audit — IATF 16949 and ISO 9001 certifications, plus product-level CE, FCC, E-Mark, RoHS, CCC and NTRA approvals.
• ✓OEM-ready from 100 pieces — Custom giftbox, logo printing and boot logo are available for minimum order quantities that work for growing distributors.

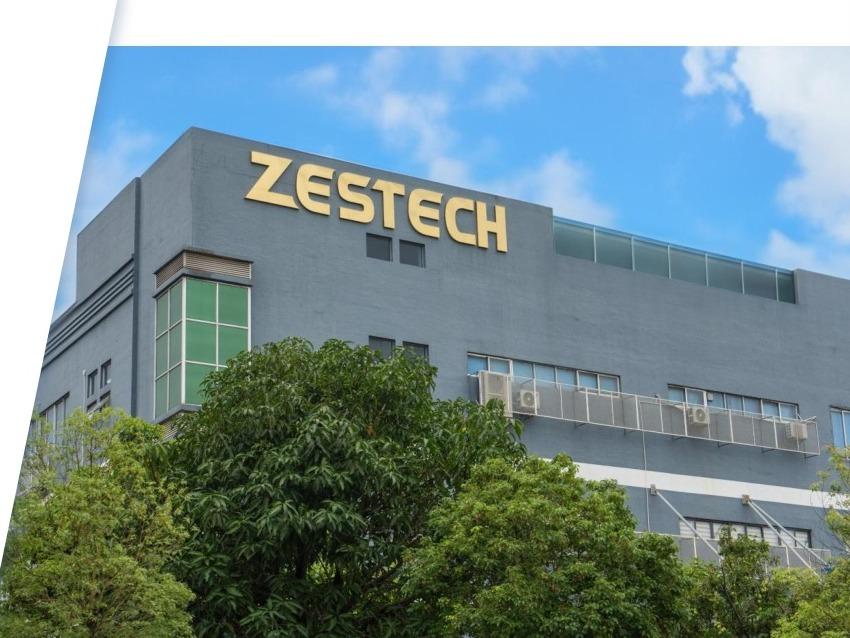

Fig. 6 — ZESTECH’s production base in Shenzhen, China, supports global automotive electronics OEM/ODM programs.
